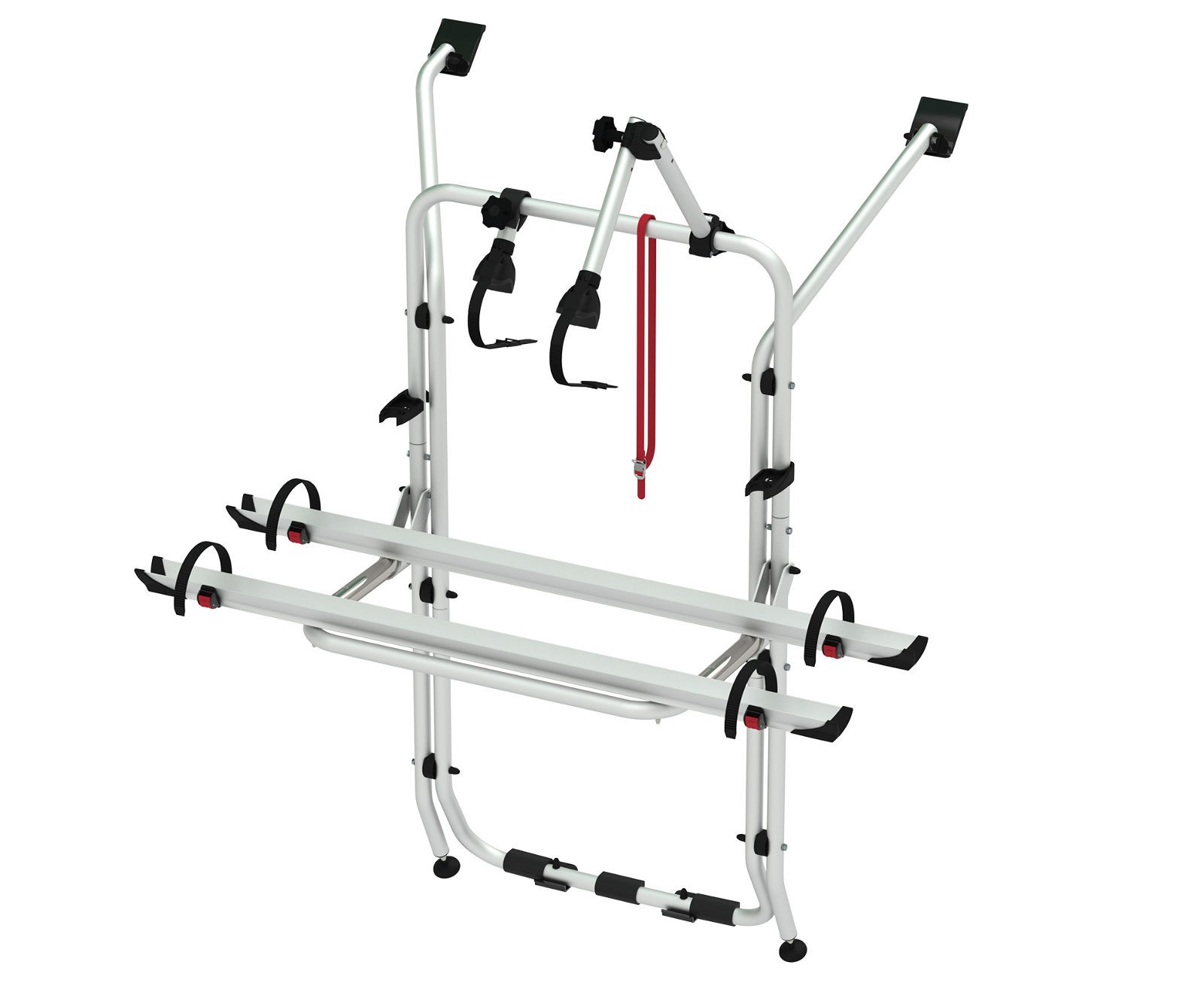

Carry-Bike specially designed for Volkswagen T5 Camper Vans

The Fiamma Carry-Bike VW T5 bike carrier has been specially designed for Volkswagen T5 minivans / camper vans with single rear door. Easy installation with the standard delivered brackets.

Suitable for VW California, VW Transporter and VW Multivan after 07/2003. Simply hooks under and over the rear tailgate without the need to drill.

Compatibility

Fits to VW Transporter T5 vans with single lift up tailgate. The bike carrier hooks over the top and bottom of the tailgate. Does NOT Fit to vans with rear spoiler. If you have a disability ramp, high roof, or other factor which may effect fitting please contact us before ordering.

Carry-Bike VW T5 standard Kit and Upgrades

Supplied as standard with: 2x Rail Quick (bike support), Bike-Block Pro 1 and 3 (frame to bike holder), 2x Rack Holders (secures the bike support when folded away) and Security Strip (buckled strap). Supplied as standard to carry 2-bikes but can be upgraded to carry 3 or 4-bikes using Agent Fiamma upgrade kits (see images above).

1. 3rd bike upgrade kit: 1x Rail Quick and 1x Bike Block Pro 2.
2. 4th bike upgrade kit: 2x Rail Quick and 1x Bike Block Pro 2 and 4.

Specification:

• Dimension: see images.
• Max. Load: 60 Kg.
• Weight: 8.3 Kg.
• TUV Approved.
• Carries as standard: 2-bikes.
• Carries max.: 4-bikes
• Frame construction: Anodised aluminium.
