Fiamma Ultra-Box 360 Rear Box

Fiamma Ultra-Box 360 Rear Box
Fiamma rear storage box with extra large dimensions Large motorhome rear storage box Water tight seals and assisted lid opening Carry-Bike fixing kit supplied as standard
SKU: 02801-01-
£550.00 Inc. VAT
Usually Dispatched in1 working day

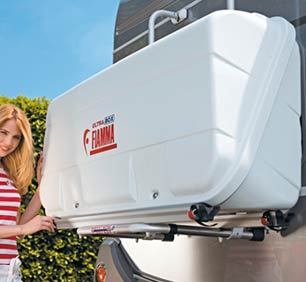

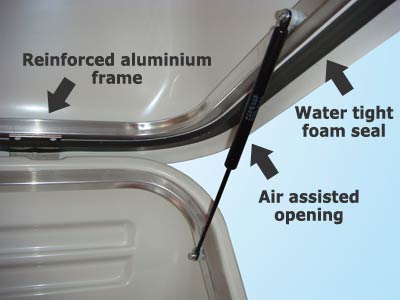

The Fiamma Ultra-Box 360 back box is suitable for the motorhome, minivan and camper van and is made made from top quality ABS-PLUS to provide high resistance and protection against impacts, weather conditions and damage caused by ultra violet rays. Fiamma Ultra Box 360 is co-extruded and has water tight foam seals and flexible luggage netting. Smooth up and down lid motion, thanks to the air assisted opening.

The Fiamma Ultra-Box 360 can be installed on the Carry-Bike (kit included), or on the rear of the vehicle with the optional Wall-Mounting kit. GS/T?V approved.

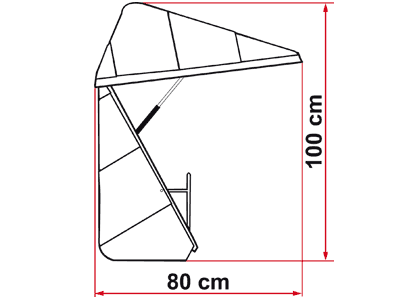

  • Dimensions open cm: 147 (L) x 80 (W) x 100 (H).

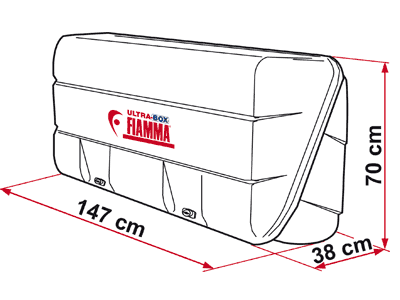

  • Dimensions closed cm: 147 (L) x 38 (W) x 70 (H).
  • Volume: 360L
  • Weight: 14kg

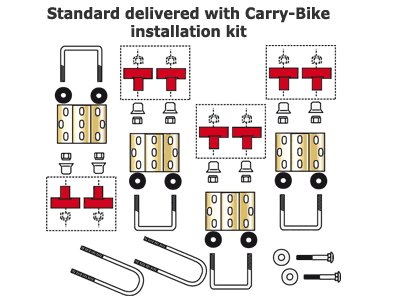

  • Complete with installation kit
  • Color: Polar White.


Can be fitted to all rear mounted Fiamma Carry Bikes except those with offset rails. In other words it can be fitted to rear mounted Carry Bikes on Motorhome, Caravan and Campervan or Van Conversion with single rear door. DO NOT FIT to van conversion or campervan with double rear doors. Make sure to stay within the load limit for your bike rack.

Can be fitted to

  • Carry Bike Pro, Pro M and Pro C*
  • Carry Bike Pro special version Inc. Pro Hymer, Pro Autotrail, Pro Knaus, Pro Trigano and L80
  • Carry Bike UL and CL
  • REAR MOUNTED Carry Bike Caravan inc Caravan Hobby, Caravan Universal and Simple Plus 200
  • Carry Bike for VW T2, T3 (T25), T4 and T5, Mercedes Viano and Vito, Vauxhall Vivaro / Renault Trafic and Ford Transit WITH SINGLE REAR DOOR

*Ultra Box fitting instructions do NOT explain fitting to the Carry Bike Pro C however Fiamma have confirmed that this can be done.

If you have purchased your Ultra-Box from Camperlands please call 0161-902-3025 for details of fitting if you are unsure.

If you purchased your Ultra-Box elsewhere please contact you supplying dealer for guidance.

Does NOT Fit

Van conversions and campervan with double rear door including;

  • Carry Bike 200 D and 200 DJ (All Versions)
  • Carry Bike VW T4 D, VW T5 D
  • Carry Bike Trafic / Vivaro D
