Fiamma F80 S Roof Awning - Deep Black Case

Fiamma F80 S Roof Awning - Deep Black Case

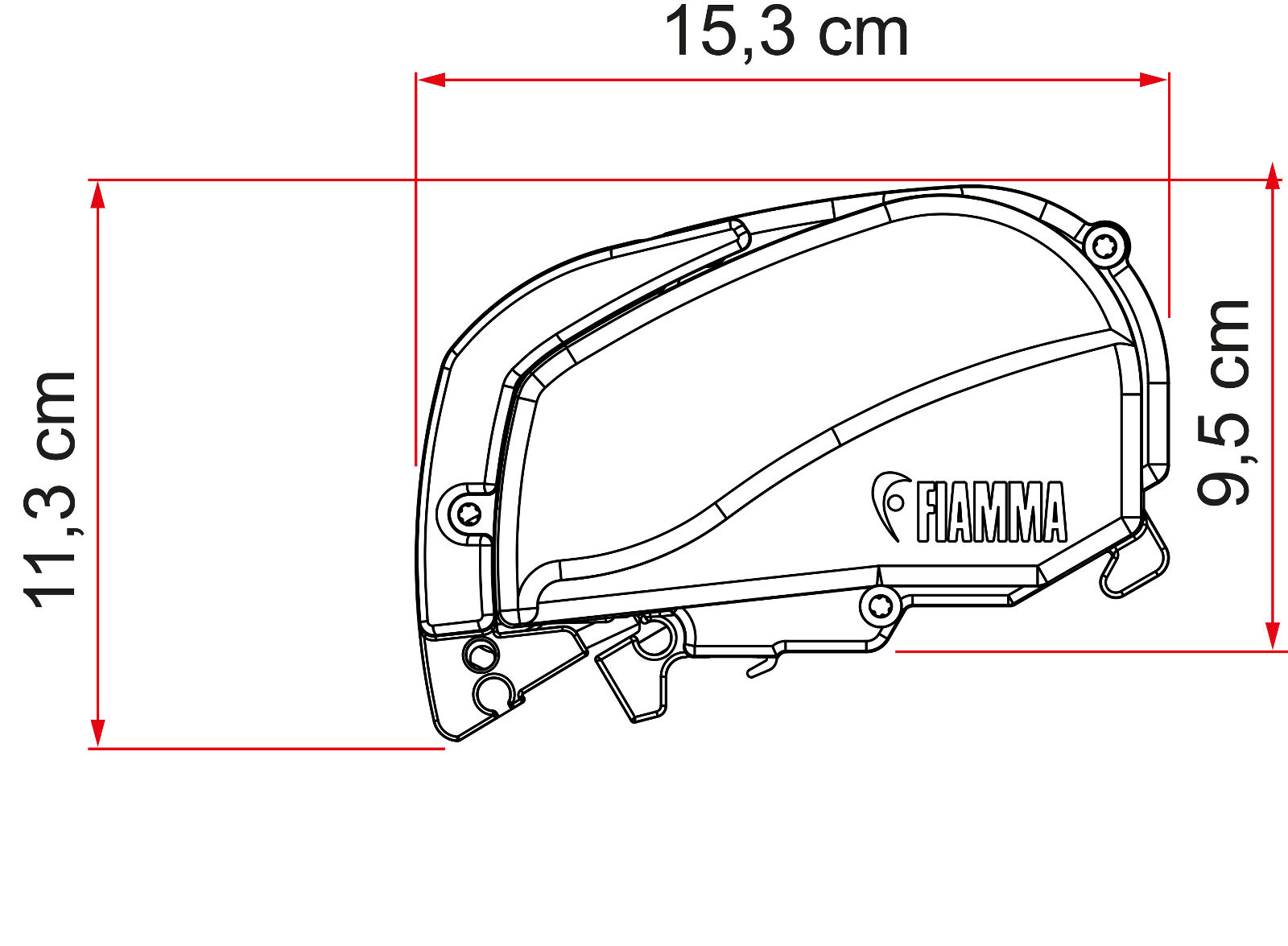

Fiamma F80s Wind-out Awning Roof mounted with new slimline profile F80s Dimensions
SKU: SKU29064
£0.00

£0.00£0.00
    Cancel OK
    Quantity
    Usually Dispatched in1 working day

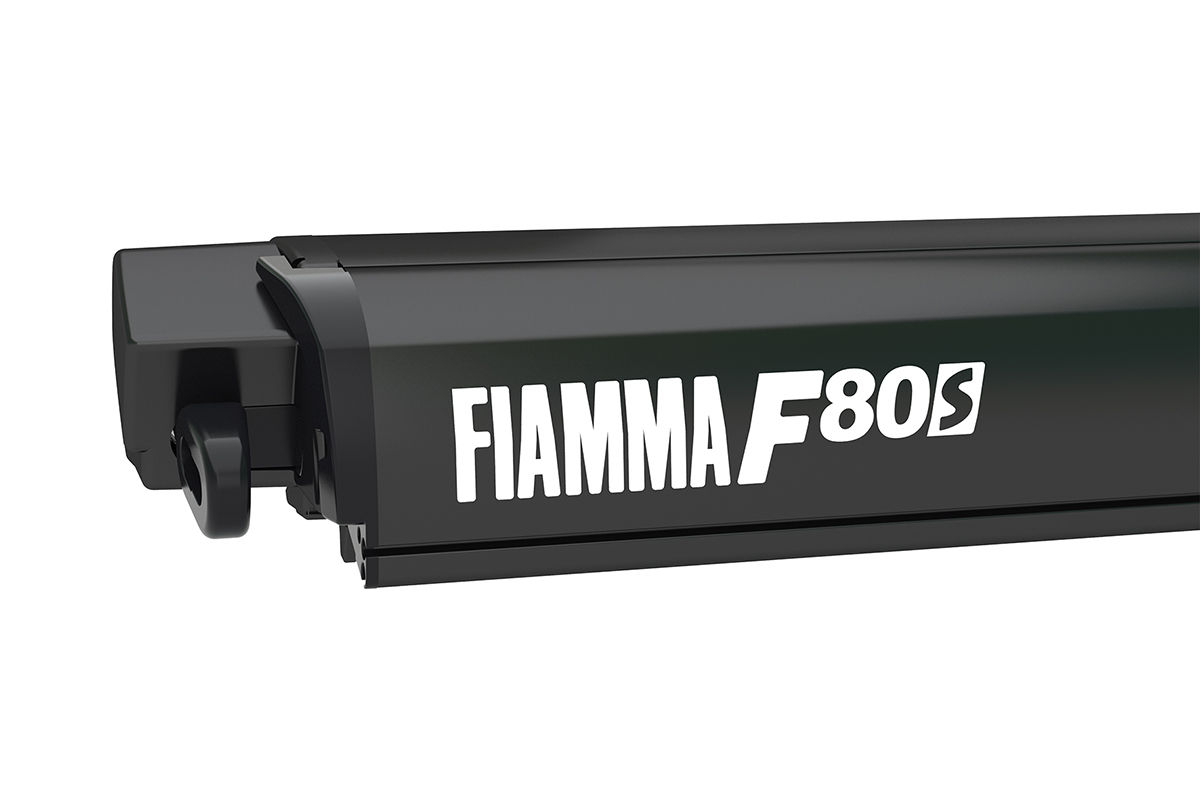

    Latest version of Fiamma's roof mounted wind-out awnings with Deep Black case colour and a choice of canopy colours and sizes.

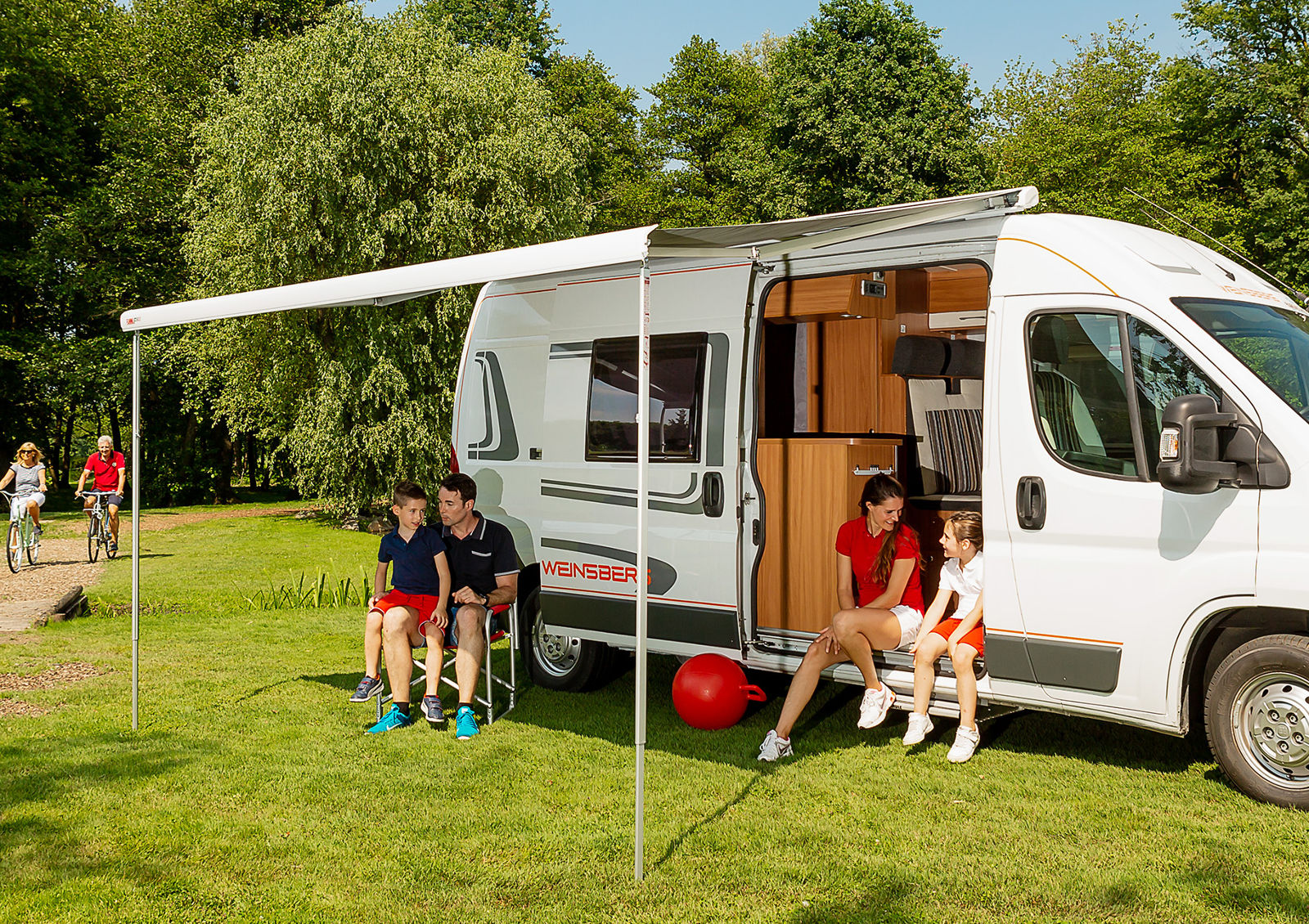

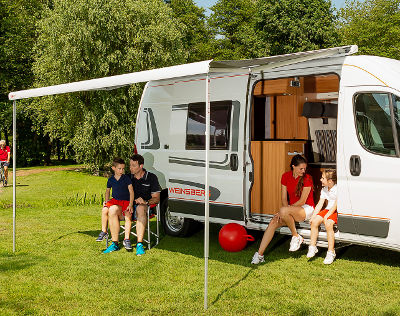

    Being roof mounted, the Fiamma F80 is the ideal fit for Campervans with high sliding doors where there isn't room for a wall mounted awning, and also offers a less obtrusive fitting option for an increasing number or modern Caravans and Motorhomes when used with the appropriate fitting kit.

    The Fiamma F80S replaces Fiamma previous F65S roof mounted awning and boasts a more compact awning case profile giving a neater, less obtrusive fit with crisp lines to match modern vehicles designs. The updates features and improved options including motor kit, triple lead bar channel and light kit compatibility make the F80 a more versatile and customisable awning.

    Features

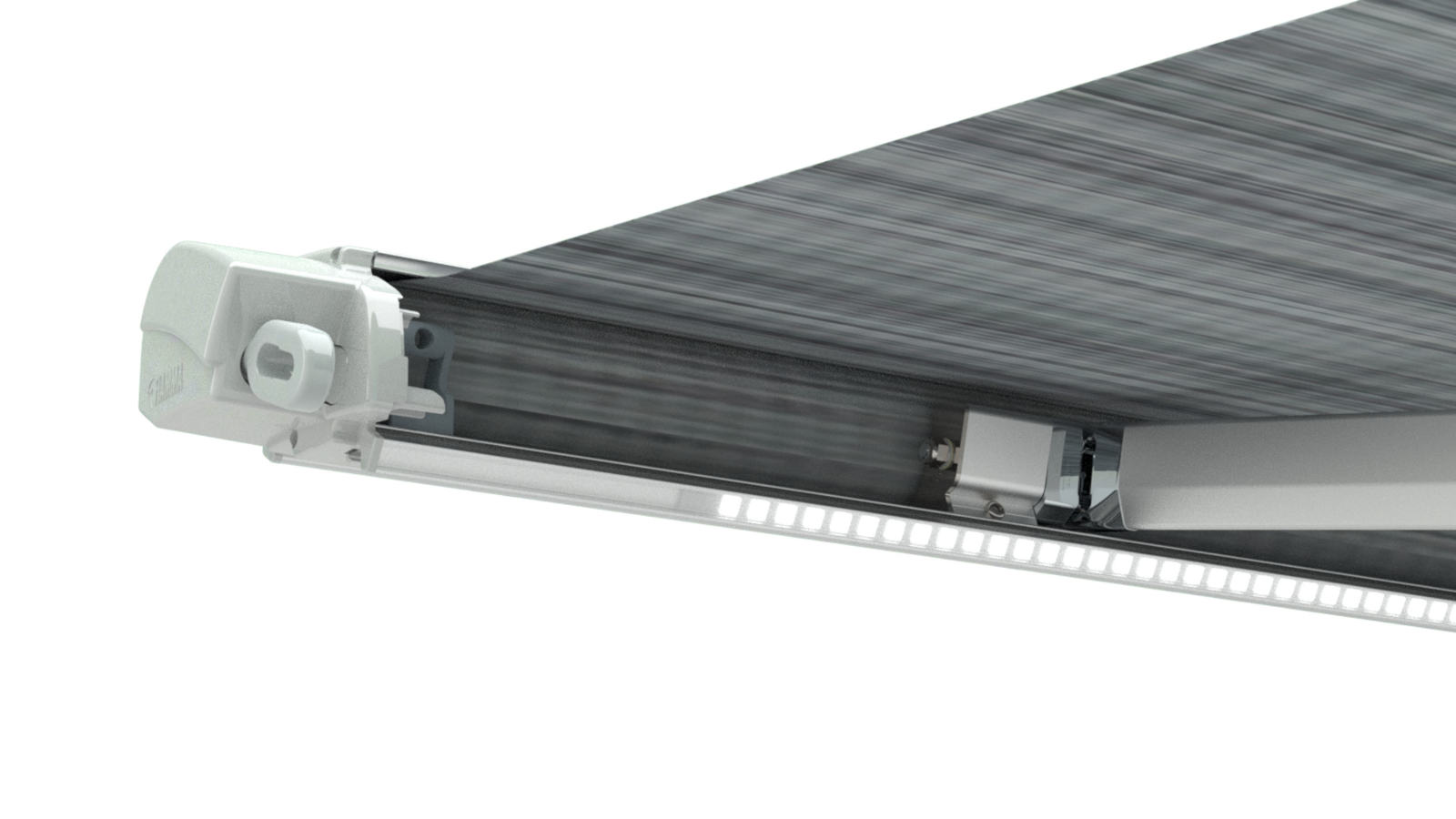

    Dual LED Predefined position in lead bar + case: Housings for the addition of the optional LED Strip Awning full-length lighting kit (5m adhesive strip) are made inside the case and the lead bar

    Compact section: Case and lead bar are more compact but as strong as ever. The awning has improved aerodynamic performance as a result of having a 20% slimmer cross-section than F65s model

    Triple Guide: Three guides on the lead bar (highlighted in red in the detail) for fitting two front panels and other accessories

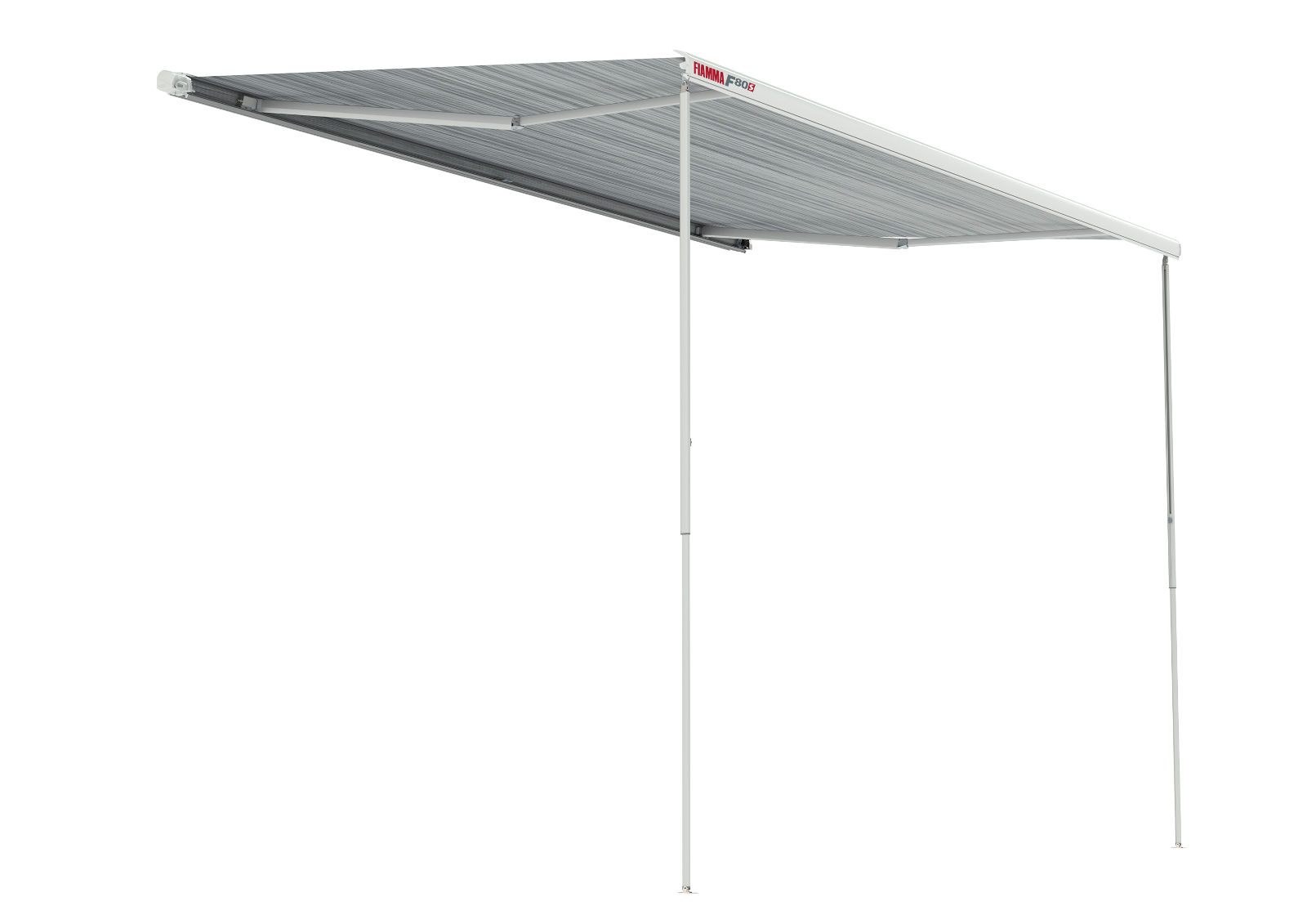

    Secure Lock: The legs can be fixed to the ground or to the wall and the height of the lead bar can be adjusted with a telescopic safe and practical system

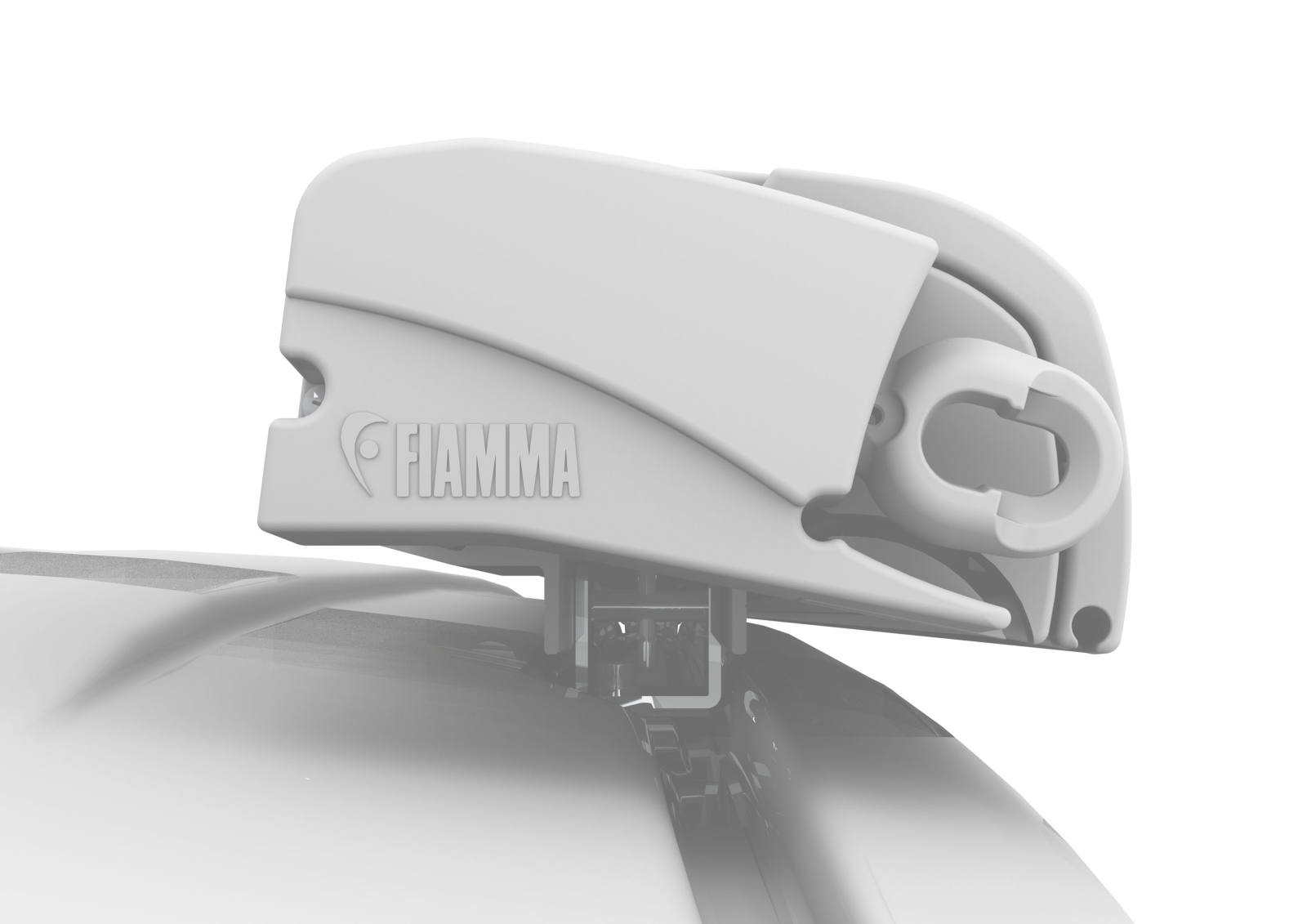

    Aluminium end caps: New design for the aluminium end caps for maximum strength

    Extra-Strong Arms: Wider, reinforced and articulated arms with double steel cable for optimal canopy tensioning

    Compatibility

    A fitting kit is NOT supplied as standard with the Fiamma F80 awning as the correct brackets have to be selected to match your particular vehicle. Due to its prevalence as a donor vehicle in the leisure industry we find these awnings are most commonly fitted to Fiat Ducato / Peugeot Boxer / Citreon Relay vans but a range of specialist installation kits are available to suit other vehicles including

    • Fiat Ducato / Peugeot Boxer / Citreon Relay (Jumper) family of vans
    • Renault Master / (Opel) Vauxhall Movano / Nissan Interstar and NV400 van family
    • VW Crafter / Mercedes Sprinter generation after 06/2006
    • Iveco Daily vans
    • Coachbuilt Motorhomes including Elddis, Hymer and Autocruise
    • Fiamma Fixing Bar and roof rack installation
    • Generic flat roof installation

    To identify the correct awning size and fitting kit to match your vehicle, owners of Fiat Ducato / Peugeot Boxer family of vans with standard, unmodified roof, can use the simple lookup table below. For other vehicles you can browse the range of Fiamma F65 / F80 Installation kits to find one to match your vehicle, or email sales@agentfiamma.co.uk for assistance.

    Fiat Ducato / Peugeot Boxer Fitting Table

    Find the row in the table to match you vehicle age and body variant. From this you can identify the correct awning length and matching fitting kit for your vehicle. For vehicles before 06-2006 you require kit 98655-373 OR 98655-693. The choice is yours, both will work.

    Vehicle AgeVan HeightVan LengthAwning SizeFitting Kit Code
    Before 06-2006H2 (2,524 mm)L2 (5,099 mm)F80S 29098655-373
    98655-693
    Before 06-2006H2 (2,524 mm)L3 (5,099 mm)F80S 34098655-373
    98655-693
    After 06-2006H2 (2,524 mm)L2 (5,416 mm)F80S 32098655-745
    After 06-2006H2 (2,524 mm)L3 (5,998 mm)F80S 37098655-745
    After 06-2006H2 (2,524 mm)L4 (6,363 mm)F80S 40098655-904
    After 06-2006H3 (2,764 mm)L2 (5,416 mm)F80S 32098655-656
    After 06-2006H3 (2,764 mm)L3 (5,998 mm)F80S 37098655-656
    After 06-2006H3 (2,764 mm)L4 (6,363 mm)F80S 40098655-656

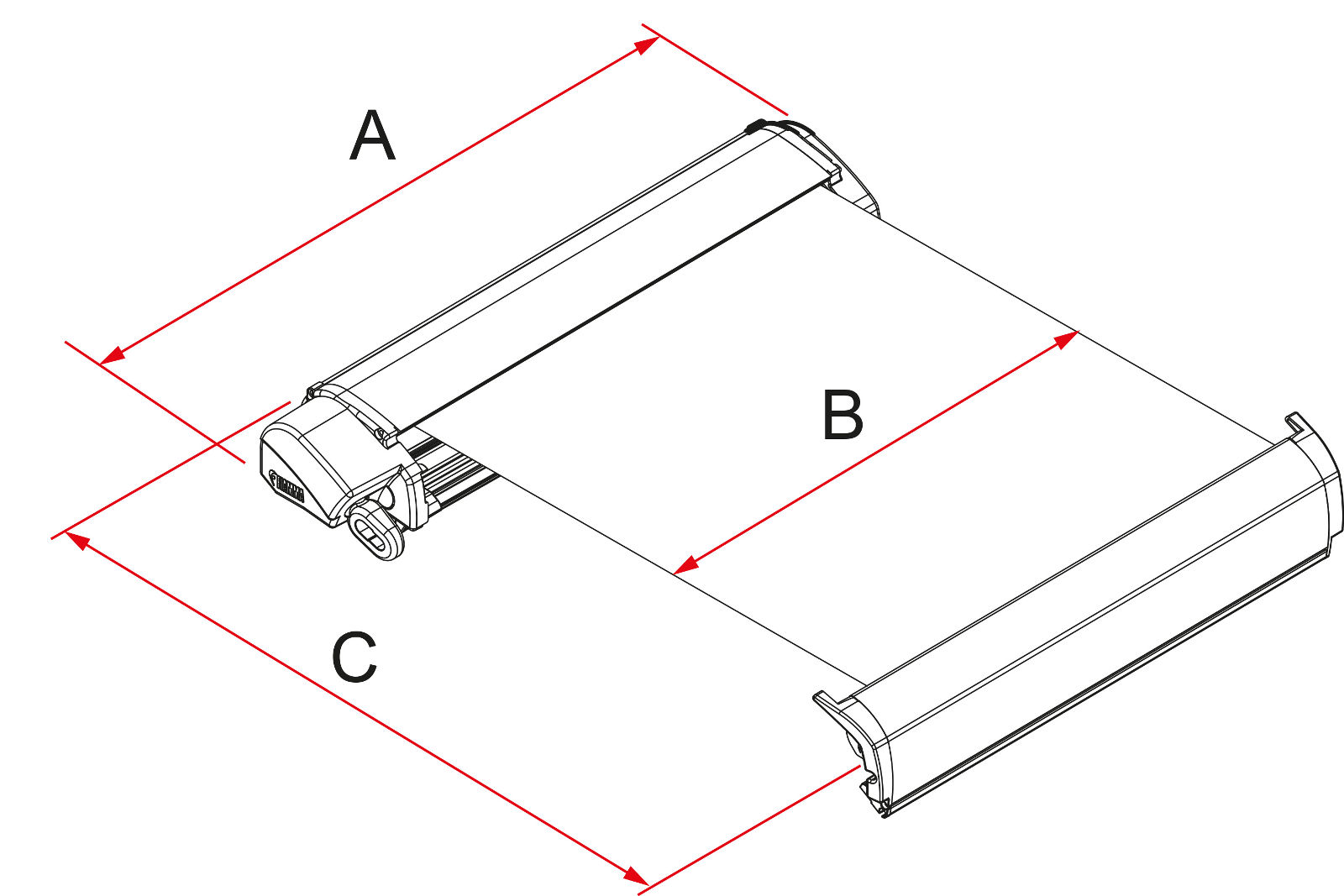

    Specification

    DescriptionCase Length
    A
    Fabric Length
    B
    Awning Extension
    C
    Shade AreaWeight
    F80S 290290 cm278 cm200 cm5.6 m227 kg
    F80S 320320 cm308 cm250 cm7.7 m229 kg
    F80S 340340 cm328 cm250 cm8.2 m230 kg
    F80S 370370 cm358 cm250 cm9 m232 kg
    F80S 400400 cm388 cm250 cm9.7 m234 kg
    F80S 425425 cm412 cm250 cm10.3 m235 kg
    F80S 450450 cm431 cm250 cm10.8 m236.5 kg

    Fiamma F80S - Standard Equipment

    • 1 x Fiamma F80S Awning
    • 1 x Winding handle
    • 1 x Winding handle storage clips
    • 4 x ground pegs
    • Awning Leg wall support kit
    • Fiamma Awning Rafter included ONLY on lengths 400, 425 and 450

    Fiamma F80S - Optional Equipment

    The Fiamma F80S awning can be customised with a range of accessories including;

    • A choice of rafters and Magicrafter to add structural support
    • Fiamma Tie Down or Tie Down S
    • Fiamma PEgs and Plates kits
    • A range of blocker side panels or complete Privacy Room enclosures (not F80S 290 length
    • LED lighting kits

    Downloads:

    Click to download Fiamma F80S Fitting Instructions
