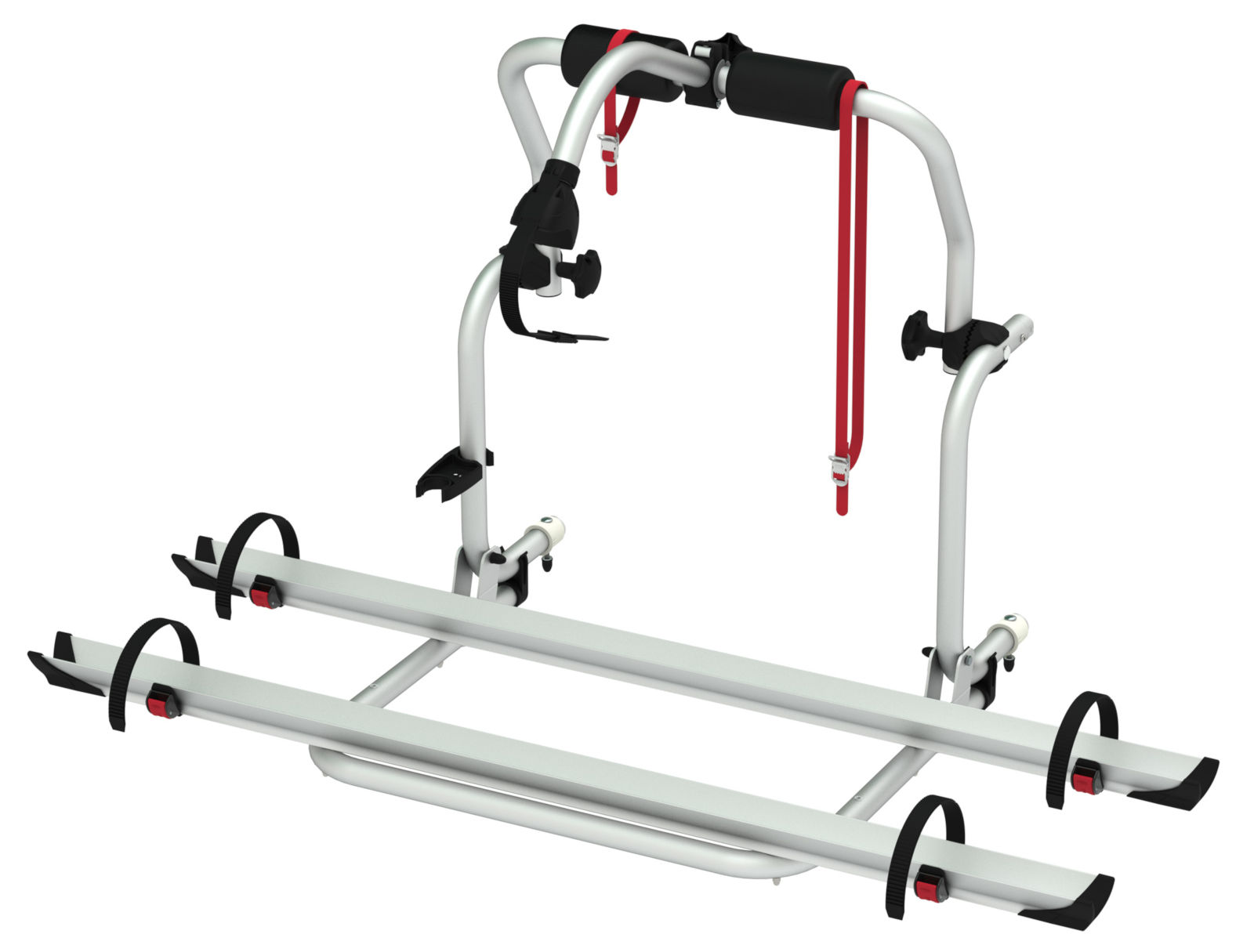

The Compact, Classic and Universal Fiamma Carry-Bike

The Fiamma Carry-Bike Trigano is the bike carrier with a fixed structure and a height of 39.5 cm. It comes without the upper and lower fixing kit (with wheelbase of 60 cm), which should already be installed on CI and Roller Team motorhomes.

Carry-Bike Trigano Standard Kit and Upgrades

Supplied as standard with: 2x Rail Quick (bike support), Bike-Block Pro 3 (frame to bike holder), 1x Rack Holder (secures the bike support when folded away) and Security Strip (buckled strap). Supplied as standard to carry 2-bikes but can also be purchased with an additional Rail Quick support and Bike Block to carry 3-bikes (see images above).

• 3rd bike upgrade kit: 1x Rail Quick and 1x Bike Block Pro 1 and 2.

Specification:

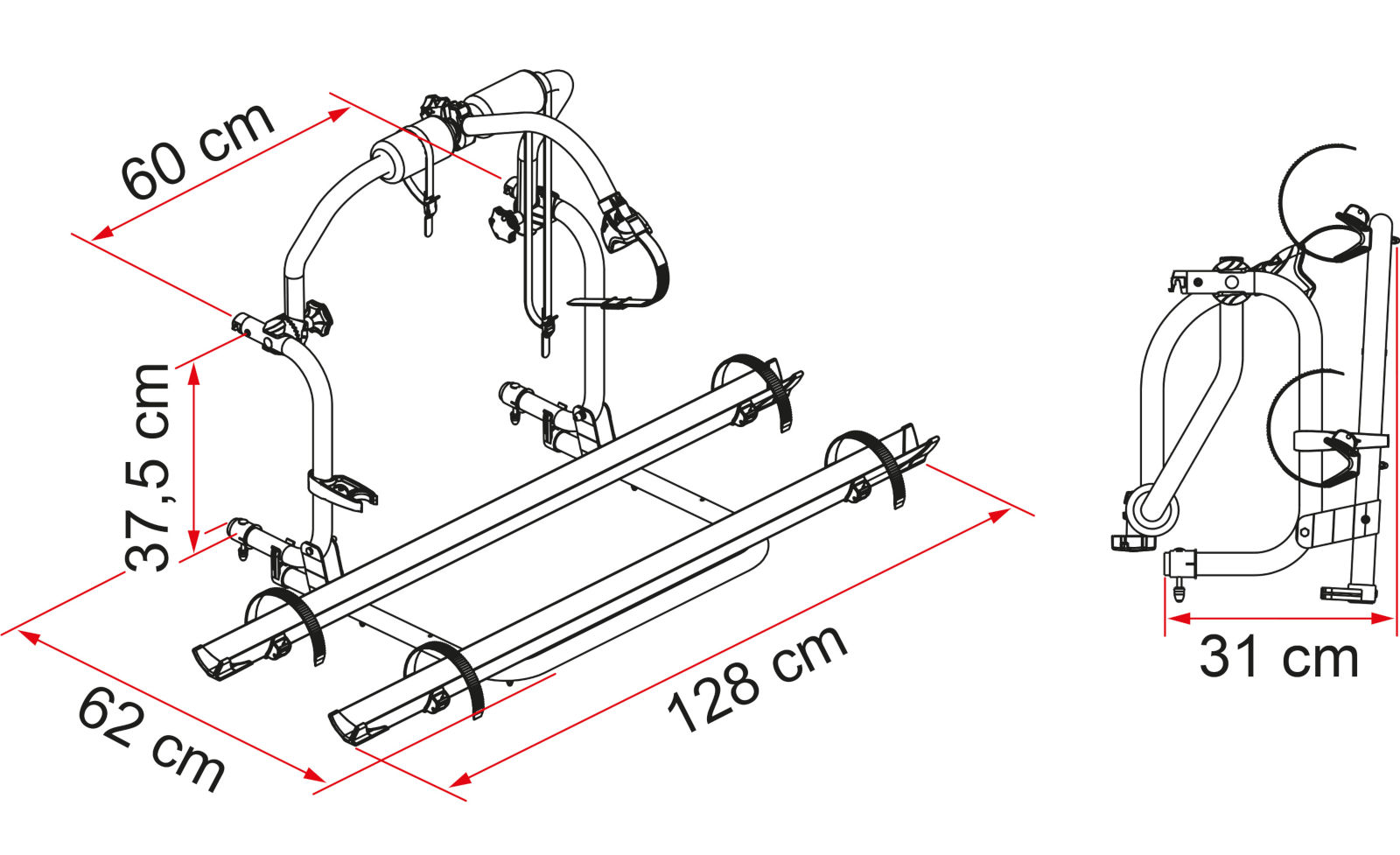

• Dimension: see images.
• Max. Load: 50 Kg.
• Weight: 5.2 Kg.
• Carries as standard: 2-bikes.
• Carries max.: 3-bikes
• Frame construction: Anodised aluminium.
