Fiamma Carry-Bike Pro Hymer / Dethleffs

Fiamma Carry-Bike Pro Hymer / Dethleffs
SKU: 02093A64B
R.R.P.: £298.08
save 23%
£229.99 Inc. VAT

£0.00£0.00
    Cancel OK

    3rd Bike Upgrade?

    Select BOTH items to add 3rd bike

    4th Bike Upgrade?

    Select BOTH items to add 4th Bike
    Quantity
    Usually Dispatched in1 working day

    Description:

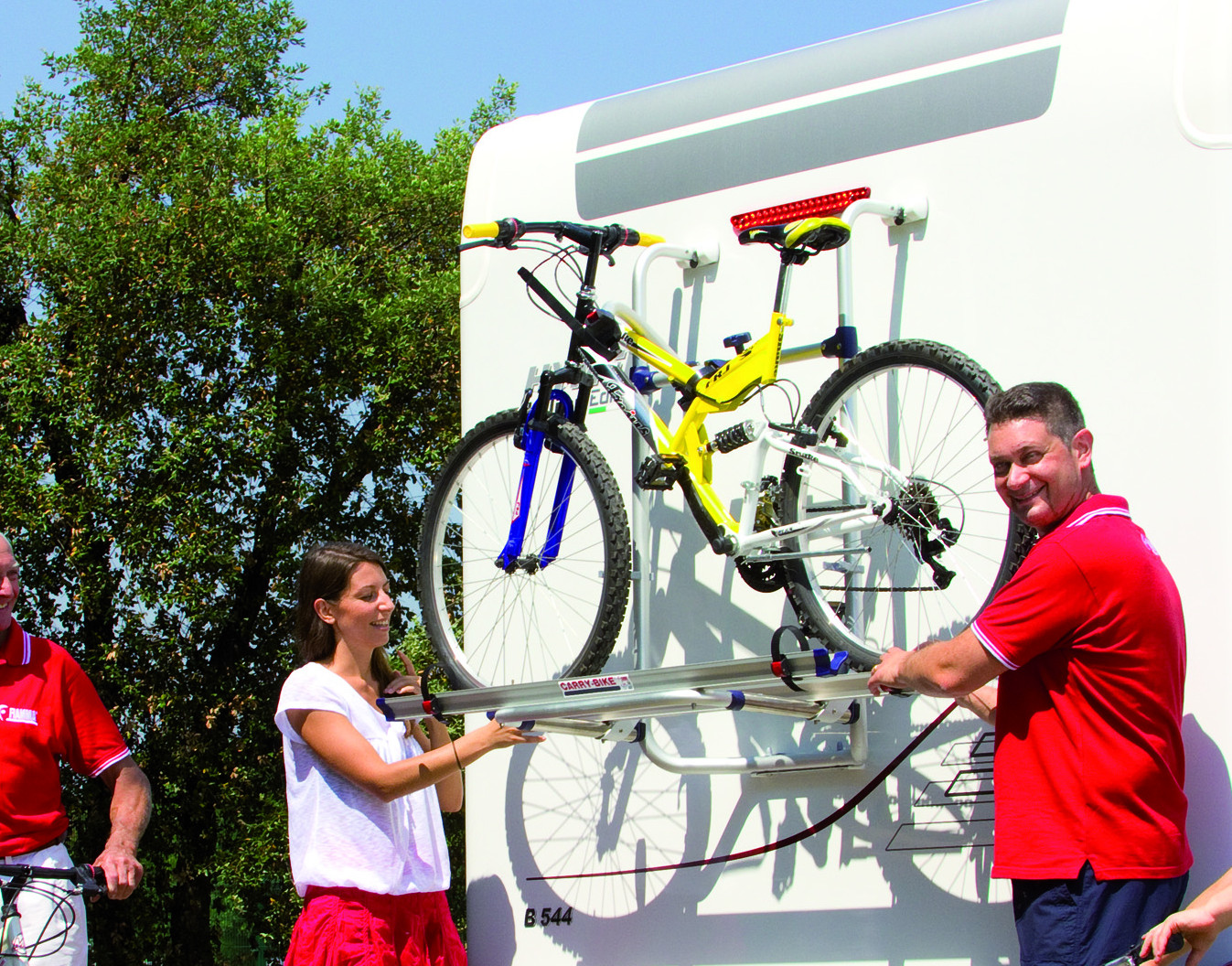

    The Carry-bike Pro Blue Version for Hymer Motorhomes

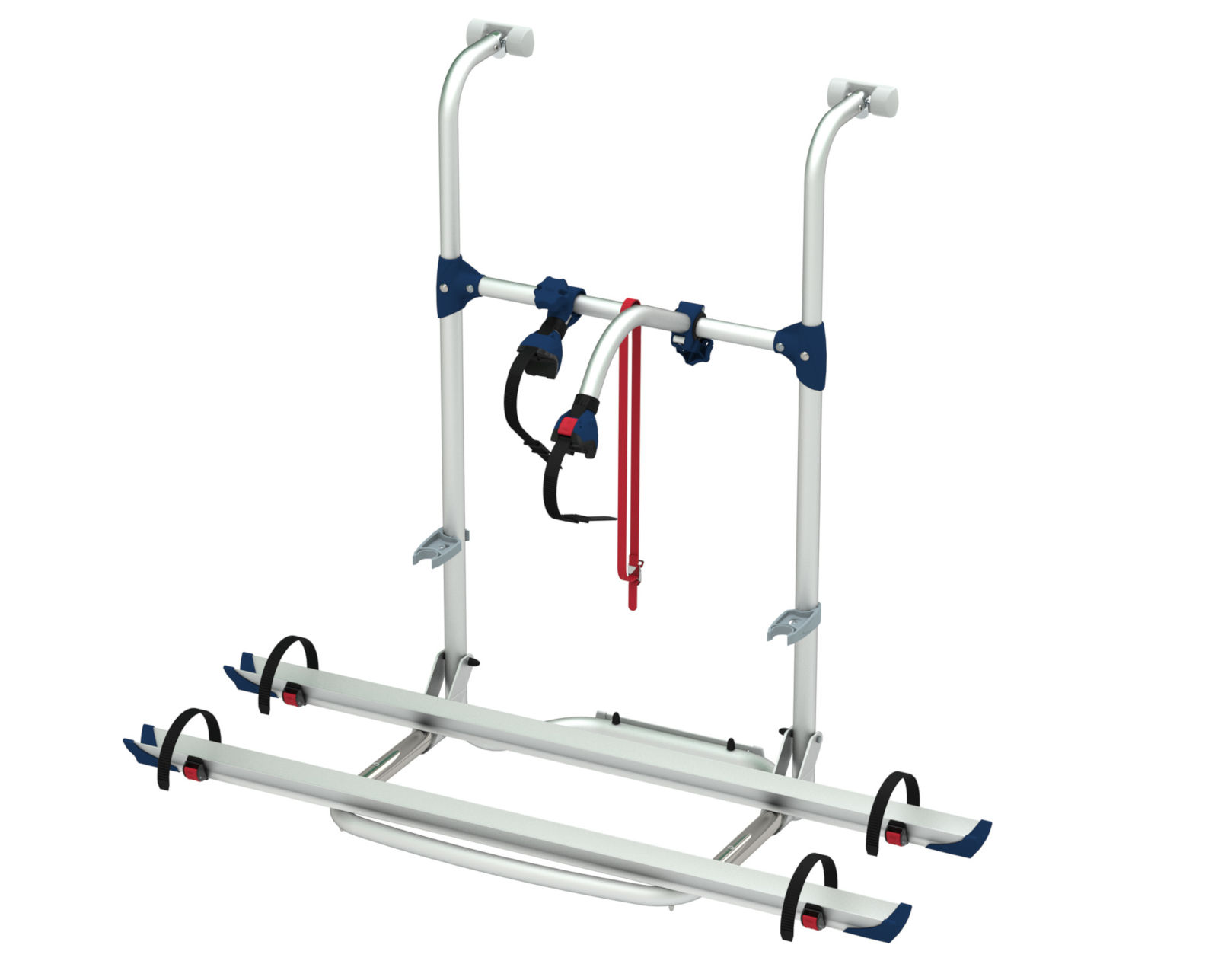

    The Fiamma Carry-Bike Pro Hymer - Dethleffs Bike carrier in blue version, suitable for the Hymer motorhome with preinstalled upper fixing brackets. Rail ends and Bike Block Pro fittings finished in Blue. Delivered with patented 'ZOOM' to install up to 4-bikes on the rail support.

    Carry-Bike Pro Hymer - Dethleffs Standard Kit and Upgrades

    Supplied as standard with: 2x Rail Quick Blue (bike support), Bike-Block Pro Blue 1 and 3 (frame to bike holder), 2x Rack Holders (secures the bike support when folded away) and Security Strip Blue (buckled strap). Supplied as standard to carry 2-bikes but can also be purchased with additional Rail Quick supports and Bike Blocks to carry 3 and 4-bikes (see images above).

    1. 3rd bike upgrade kit: 1x Rail Quick Blue and 1x Bike Block Pro Blue 2.
    2. 4th bike upgrade kit: 2x Rail Quick Blue and 1x Bike Block Pro Blue 2 and 4.

    Fiamma Kit Dethleffs

    The 'Kit Dethleffs' upper bracket kit allows you to professionally install the Carry-Bike Pro Hymer to Dethleffs motorhomes.

    Specification:

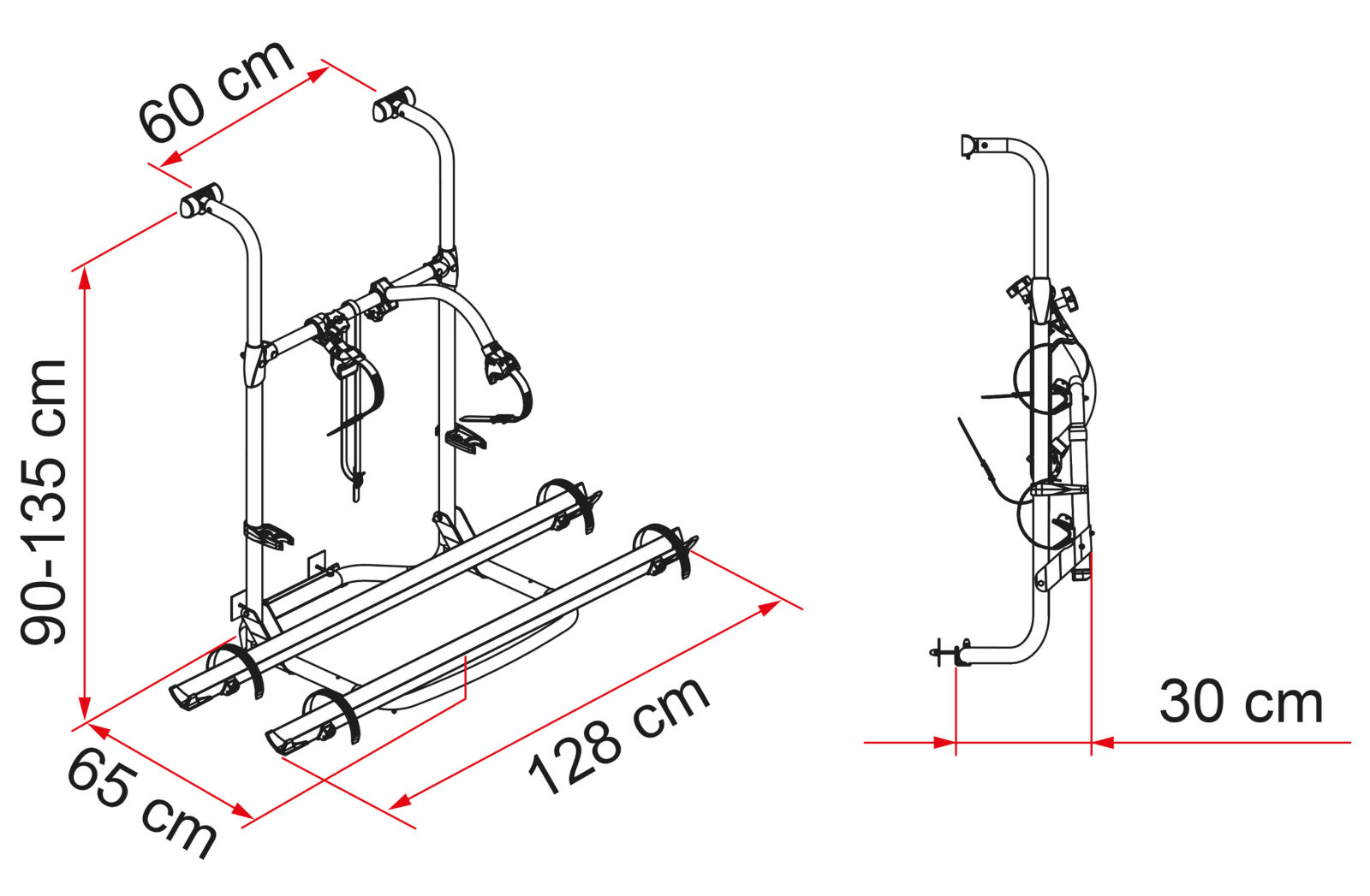

    • Dimension: see images.
    • Max. Load: 60 Kg.
    • Weight: 8.2 Kg.
    • TUV Approved.
    • Carries as standard: 2-bikes.
    • Carries max.: 4-bikes
    • Frame construction: Anodised aluminium.

    Downloads:

    Click to download Fiamma Carry Bike Hymer Fitting Instructions
    For Vehicle Type Motorhome
    Fitting Position Rear Wall Fitting
    Bikes Standard 2
    Bikes Max 4
    E-Bike Compatible Option
    Fitting Notes Supplied with upper brackets to connect to factory installed Hymer mounting point.

    Lower fixing is bolt through wall installation. Check access inside wall for fittings.
    Min. Vertical Fitting Distance (cm) 90
    Max. Vertical Fitting Distance (cm) 135
    Bike Rack Fits Within...(cm) 90
    Bike Rack Fits Over ...(cm) 135
    Weight Capacity (kg) 60
    Weight 8.20 kgs
    Manufacturers Part Number 02093A64B
    Nova Code 11522
    Grove Code QQ106348
