Fiamma Carry-Bike L80 Laika

Fiamma Carry-Bike L80 Laika
SKU: 02093B59A
R.R.P.: £301.32
save 11%
£268.00 Inc. VAT

    Cancel OK

    3rd Bike Upgrade?

    Select BOTH items to add 3rd bike

    4th Bike Upgrade?

    Select ALL items to add 4th bike?
    Usually Dispatched in1 working day

    Special Version of Carry-Bike for Laika Motorhomes.

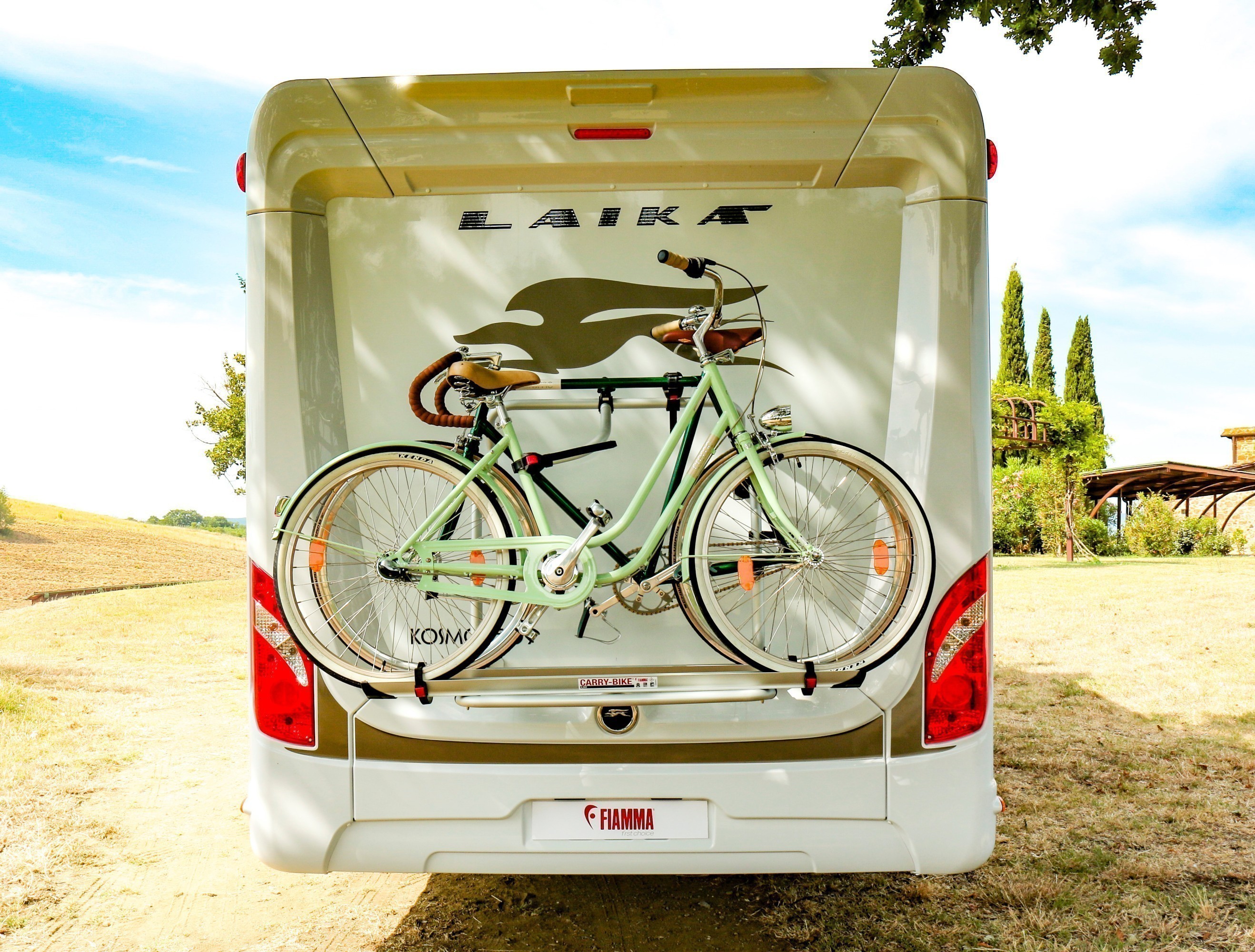

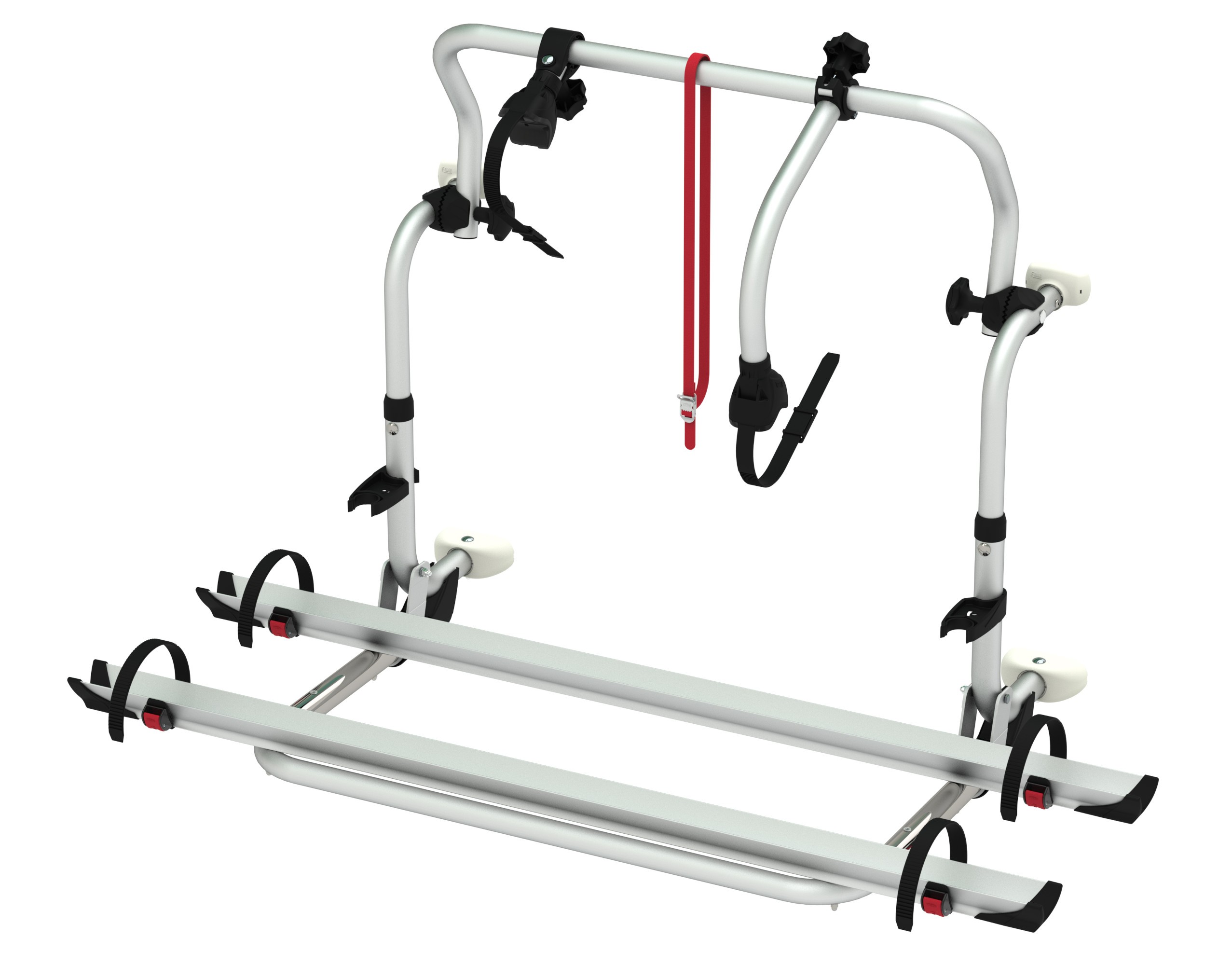

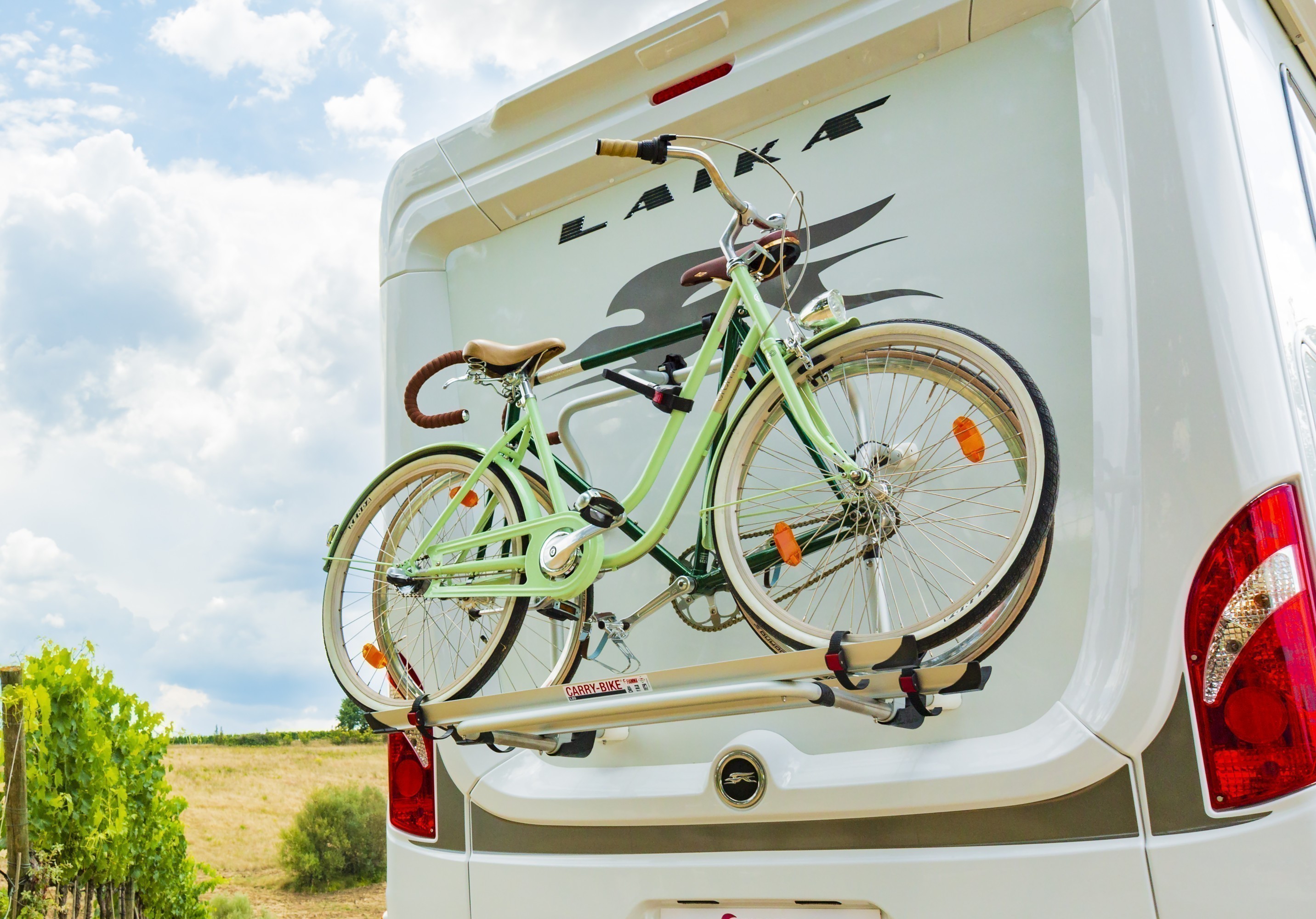

    The Fiamma Carry-Bike L80 - Laika is a special version of Fiamma bike carrier Pro C with a wider 80 cm wheelbase, designed specifically for Laika motorhomes.

    Carry-Bike L80 - Laika Standard Kit and Upgrades

    Supplied as standard with: 2x Rail Quick (bike support), Bike-Block Pro 1 and 3 (frame to bike holder), 2x Rack Holders (secures the bike support when folded away) and Security Strip (buckled strap). Supplied as standard to carry 2-bikes but can be upgraded to carry 3 and 4-bikes using Agent Fiamma upgrade kits (see images above).

    1. 3rd bike upgrade kit: 1x Rail Quick and 1x Bike Block Pro 2.
    2. 4th bike upgrade kit: 2x Rail Quick and 1x Bike Block Pro 2 and 4.

    Due to the wider 80 cm frame, it is safe to use Quick 140 Red and Rail Quick 200 red.

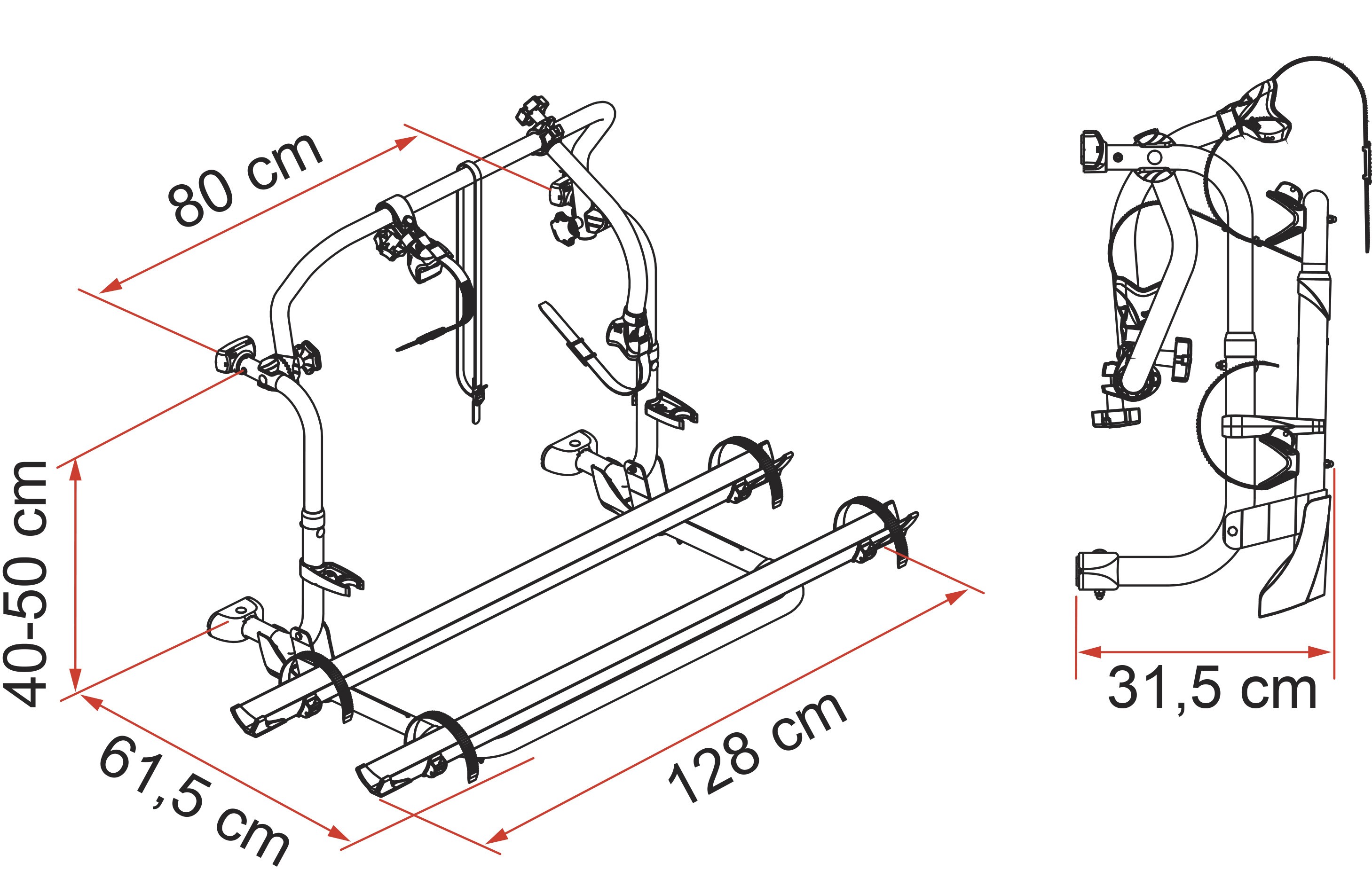

    • Dimension: see images.
    • Max. Load: 60 Kg.
    • Weight: 7.9 Kg.
    • TUV Approved.
    • Carries as standard: 2-bikes.
    • Carries max.: 4-bikes
    • Frame construction: Anodised aluminium.


    Click to download Fiamma Carry Bike CL Fitting Instructions
    For Vehicle Type Motorhome
    Fitting Position Rear Wall Fitting
    Bikes Standard 2
    Bikes Max 4
    E-Bike Compatible Option
    Fitting Notes Bolt through wall installation. Check access inside wall for fittings.
    Min. Vertical Fitting Distance (cm) 40
    Max. Vertical Fitting Distance (cm) 50
    Bike Rack Fits Within...(cm) 40
    Bike Rack Fits Over ...(cm) 50
    Weight Capacity (kg) 60
    Weight 7.90 kgs
    Global Trade Item Number 8004815397685
    Manufacturers Part Number 02093B59A
