Fiamma Carry Bike Frame Sprinter Deep Black

Fiamma Carry Bike Frame Sprinter Deep Black
SKU: 08753-02- / 02096-35A
£1,162.48 Inc. VAT

    Cancel OK

    Add 3rd Bike

    Select BOTH items to carry a 3rd bike

    Add license plate carrier?

    Usually Dispatched in1 working day

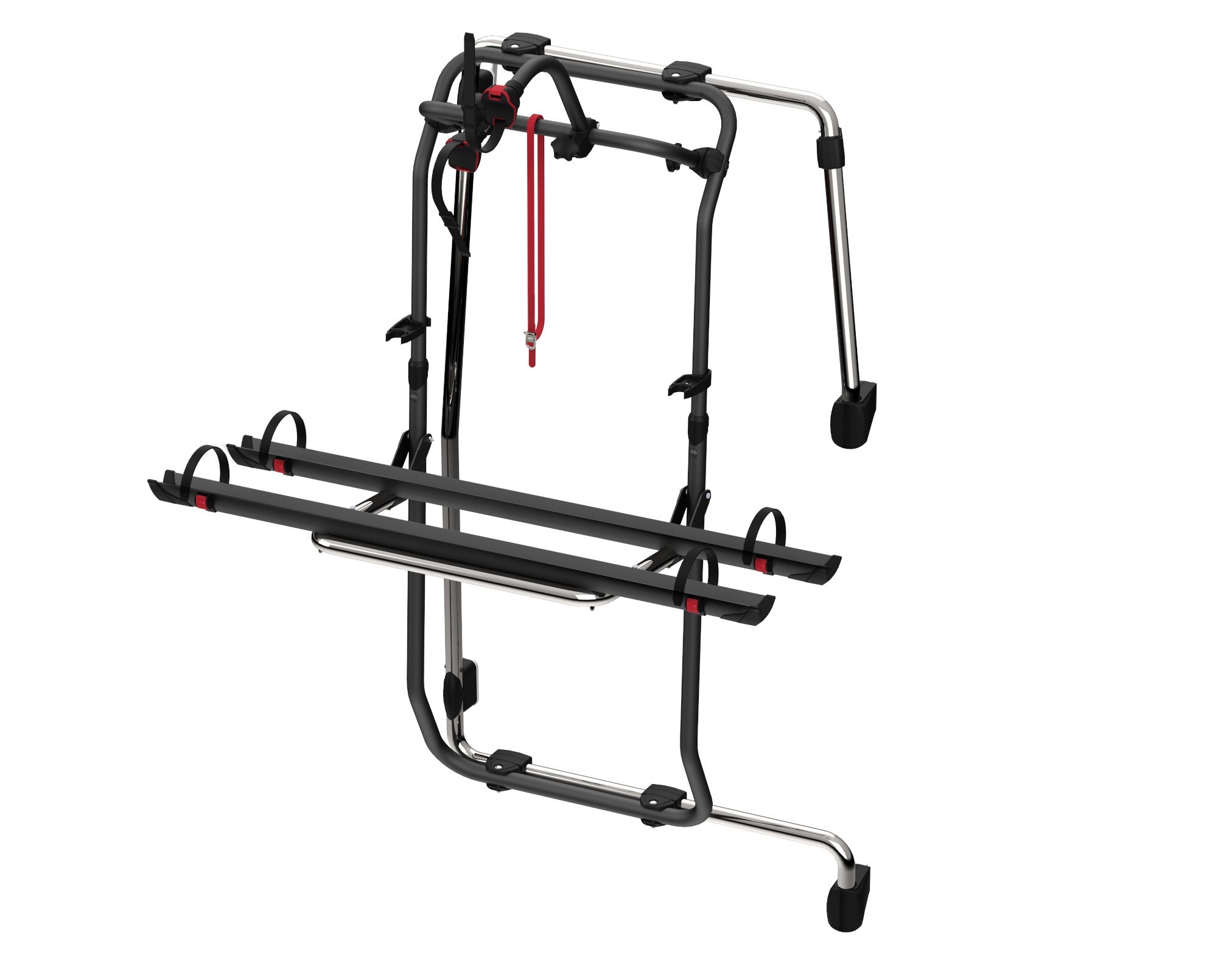

    Fiamma bike carrier to fit Mercedes Sprinter vans and Campervans from 2018 onward. Fits to H2 and H3 vans with double rear doors but DOES NOT FIT 270° hinge system.

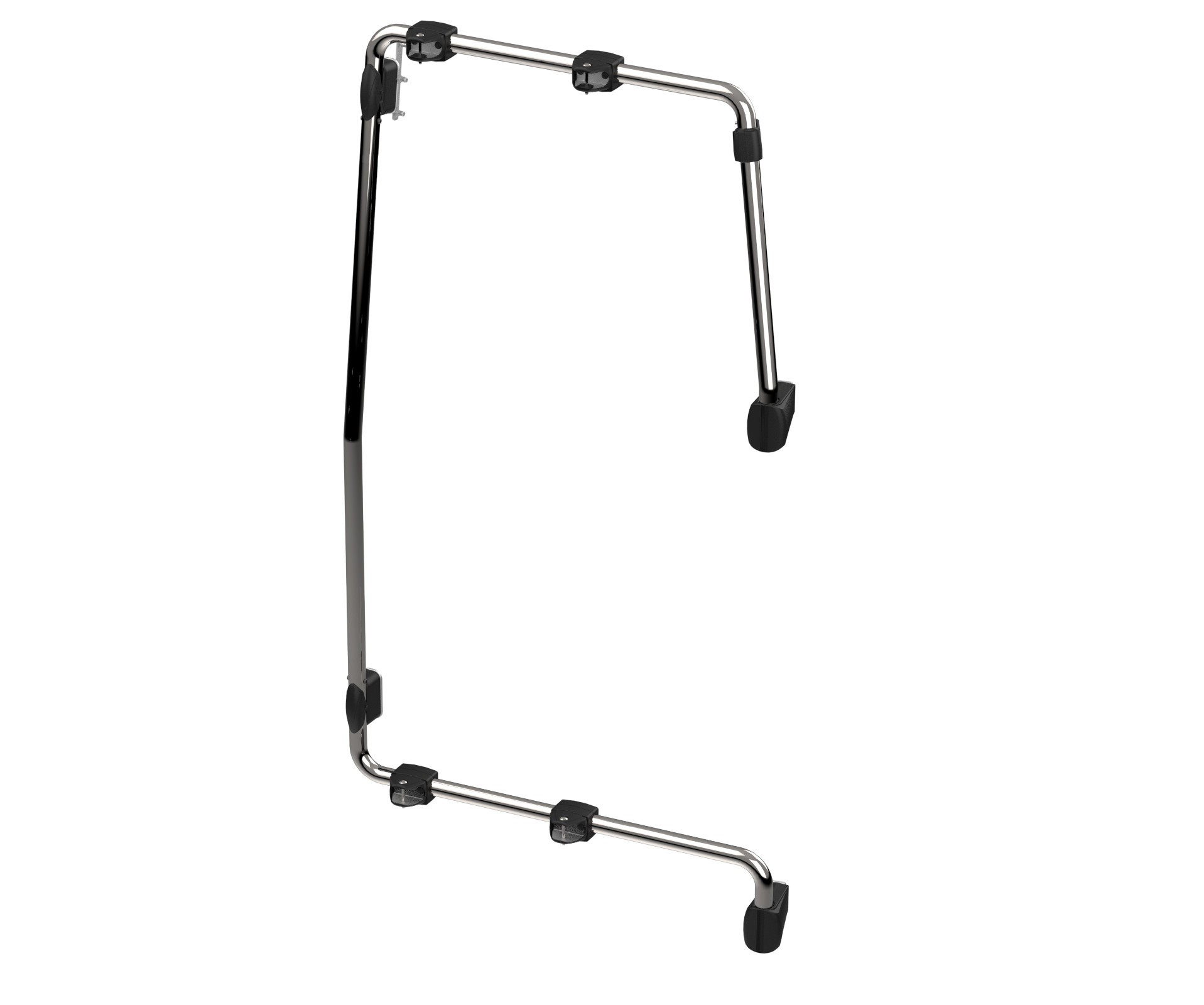

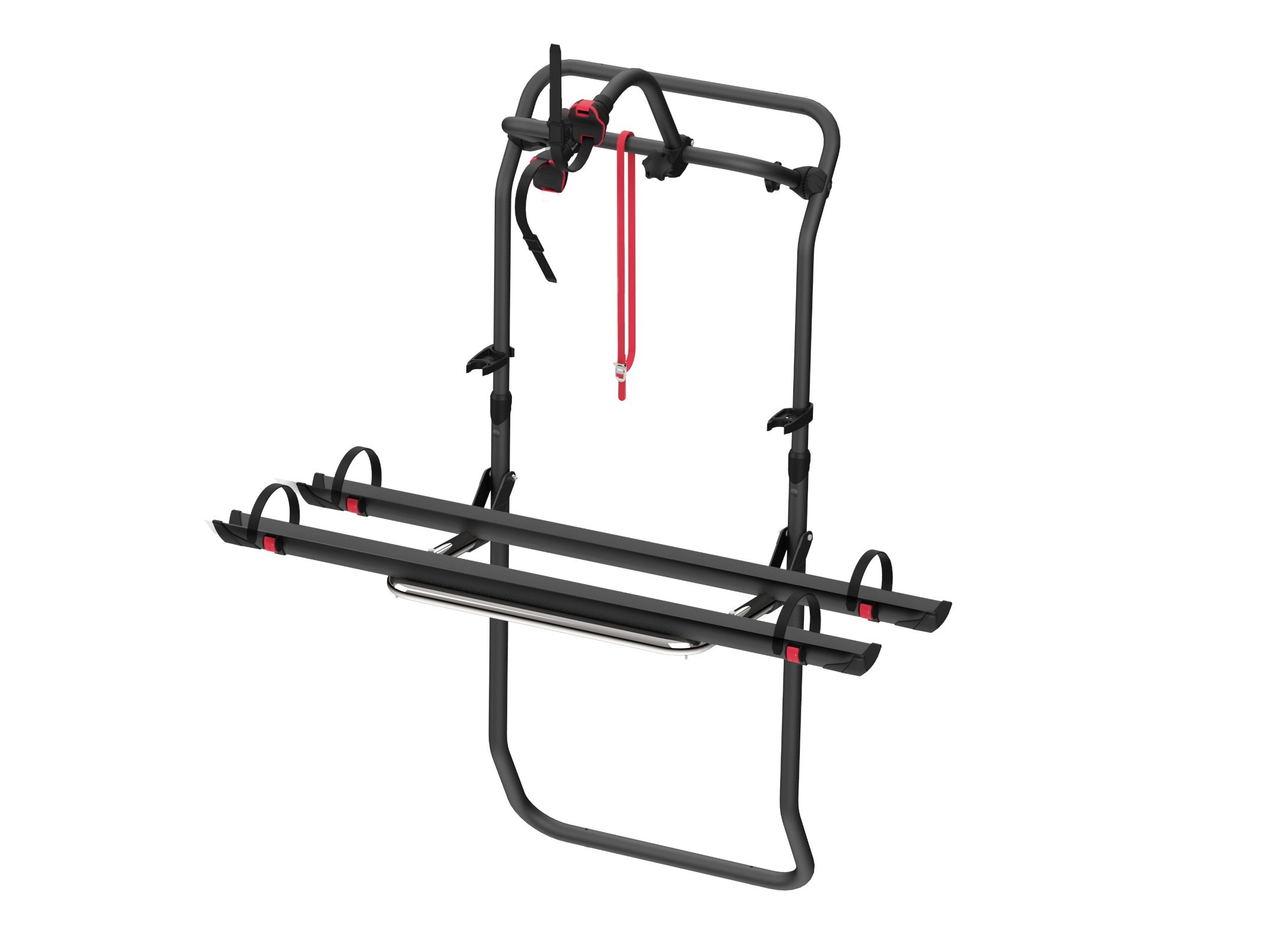

    This listing includes the Fiamma Kit Frame Sprinter (08753-02-) which is the vehicle specific mounting frame in Stainless Steel, and Fiamma Carry Bike Frame in Deep Black (02096-35A) which is the part the bikes are loaded on.

    Carry Bike Frame Sprinter carries 2 bikes as standard but, because it mounts to the door frame rather than the door itself, it is suitable for carrying 2 E-bikes or can be upgraded to carry 3 bikes by purchasing the additional rail and bike Block arm. The Fiamma Carry Bike Frame Sprinter has a total weight capacity of 50kg.

    The bike support rails can be set to 3 different heights (standard, medium and low) to make lifting the bikes onto the rack easier. In the medium and lower position you will need a License Plate Carrier or trailer board as the bikes can obstruct the vehicle number plate and running lights.


    Model Carry Bike Frame Sprinter
    Bikes carried standard 2
    Bikes carried max 3
    Max Load 50 kg
    E-bike compatible Yes

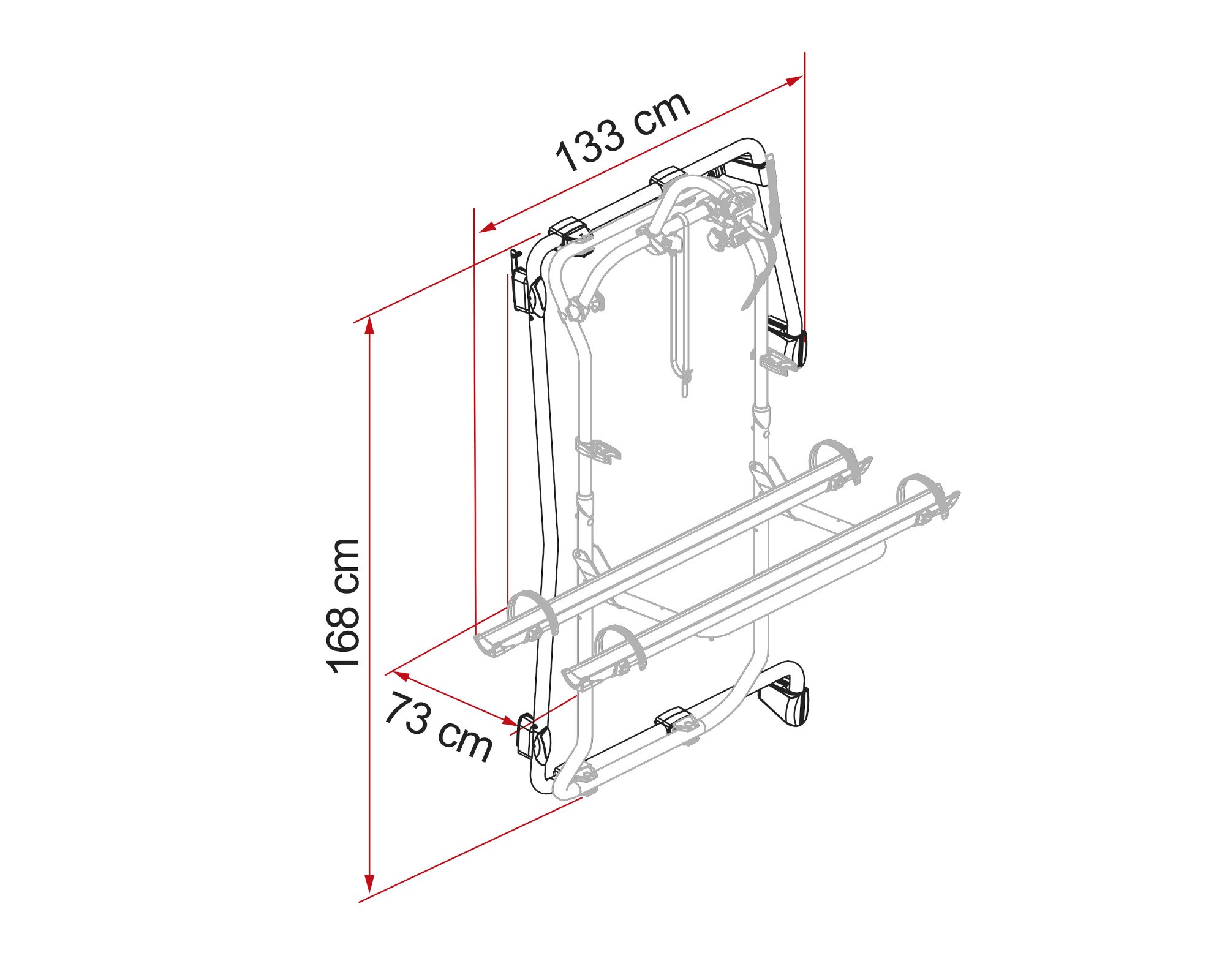

    Vertical Wheelbase 168cm
    Weight 18.9 kg
    Bike-Block Pro S 1 Standard
    Bike-Block Pro S 2 Optional
    Bike-Block Pro S 3 Standard
    Rail Plus 2 x Included as standard / 1 x optional
    Licence Plate Carrier Optional
    E-bikes max 2


    Instructions for Fiamma Kit Frame Sprinter

    Click to download Fiamma Carry Bike Kit Frame Sprinter  Fitting Instructions

    Instructions for Fiamma Carry Bike Frame

    Click to download Fiamma Carry Bike Frame Fitting Instructions
    Fitting Position Rear Door Mounted
    Bikes Standard 2
    Bikes Carried Max 3
    Weight Capacity (kg) 50
    E-Bike Compatible Yes
    Fitting Notes
    Rear Door Style Double Barn Doors
    Fits Spoiler? No
    Weight 18.90 kgs
    Manufacturers Part Number 08753-02- / 02096-35A
