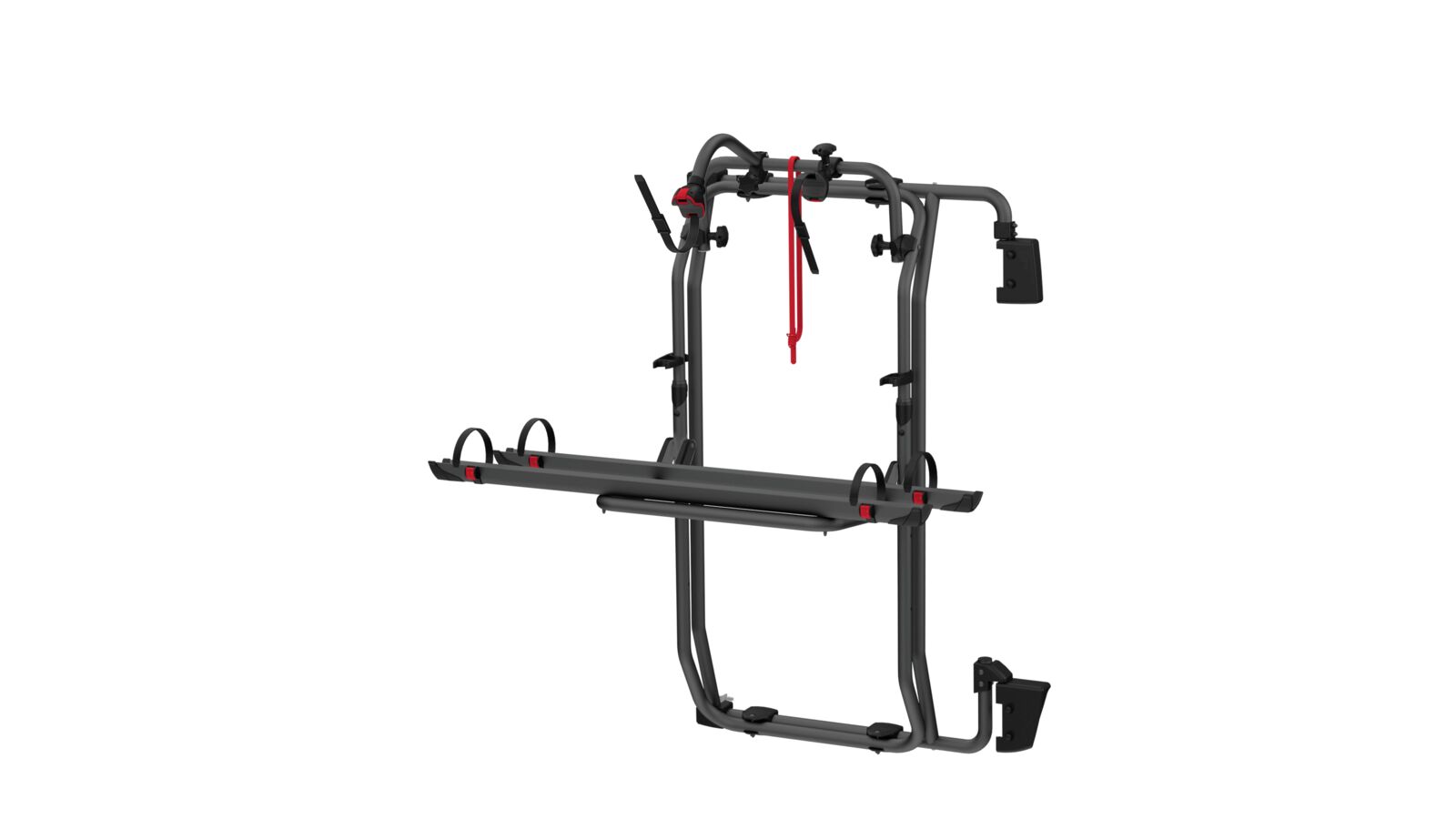

Fiamma Carry Bike Frame Ducato - Deep Black
Usually Dispatched in1 working day
Description
Fiamma bike carrier to fit Fiat Ducato, Peugeot Boxer and Citroen Relay / Jumpers vans and Campervans from 2006 onward. Fits to H2 and H3 vans with double rear doors but DOES NOT FIT 270° hinge system.
This listing includes the Fiamma Kit Frame Ducato (08753-01A) which is the vehicle specific mounting frame and Fiamma Carry Bike Frame in Deep Black (02096-40A) which is the part the bikes are loaded on.
Carry Bike Frame Ducato carries 2 bikes as standard but, because it mounts to the door frame rather than the door itself, it is suitable for carrying 2 E-bikes or can be upgraded to carry 3 bikes by purchasing the additional rail and bike Block arm. The Fiamma Carry Bike Frame Ducato has a total weight capacity of 50kg.
The bike support rails can be set to 3 different heights (standard, medium and low) to make lifting the bikes onto the rack easier. In the medium and lower position you will need a License Plate Carrier or trailer board as the bikes can obstruct the vehicle number plate and running lights.
Specification
| Model | Carry Bike Frame Ducato |
|---|---|
| Bikes carried standard | 2 |
| Bikes carried max | 3 |
| Max Load | 50 kg |
| E-bike compatible | Yes |
| Vertical Wheelbase | 136cm |
| Weight | 20.2 kg |
| Bike-Block Pro S 1 | Standard |
| Bike-Block Pro S 2 | Optional |
| Bike-Block Pro S 3 | Standard |
| Rail Plus | 2 x Included as standard / 1 x optional |
| Licence Plate Carrier | Optional |
| E-bikes max | 2 |
| Fitting Position |
Rear Door Mounted
|
|
| Bikes Standard | 2 | |
| Bikes Carried Max | 3 | |
| Weight Capacity (kg) | 50 | |
| E-Bike Compatible |
Yes
|
|
| Fitting Notes | ||
| Rear Door Style |
Double Barn Doors
|
|
| Fits Spoiler? | No | |
| Weight | 20.20 kgs | |
| Manufacturers Part Number | 08753-01A / 02096-40A | |
