Fiamma bike rack to fit Mercedes Sprinter from 2006 onward and Volkswagen Crafter from 2006 to 2016 with double rear doors (H2 and H3).

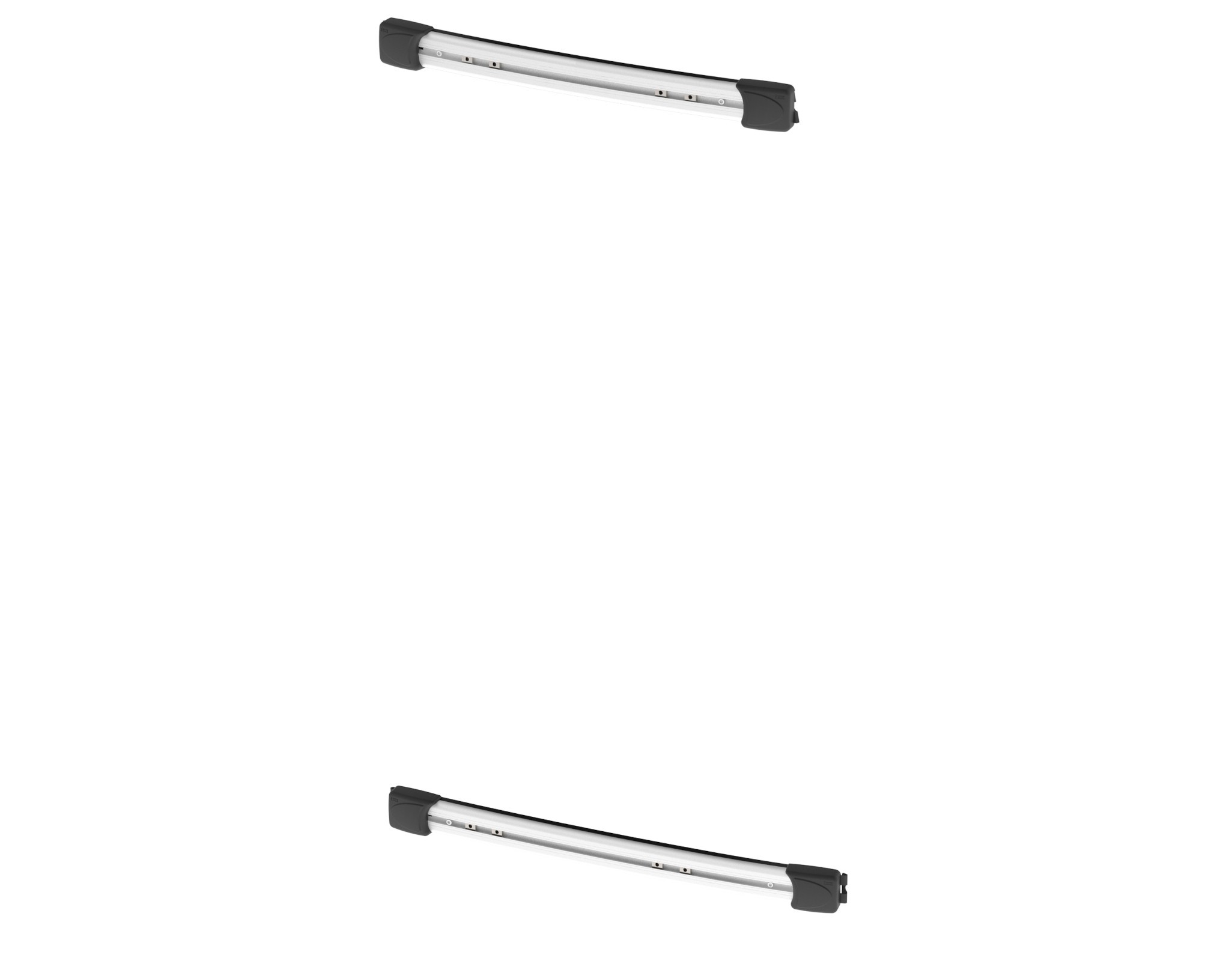

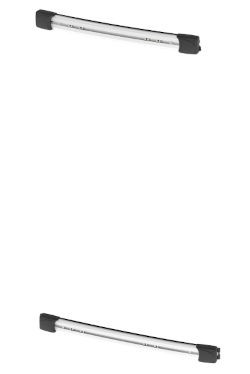

This listing includes the Fiamma Kit Bars DJ Sprinter / Crafter (08754-02-) which is the vehicle specific mounting bars, and Fiamma Carry Bike DJ (02096-26-) which is the part the bikes are loaded on. Both parts are anodised aluminium with black trim.

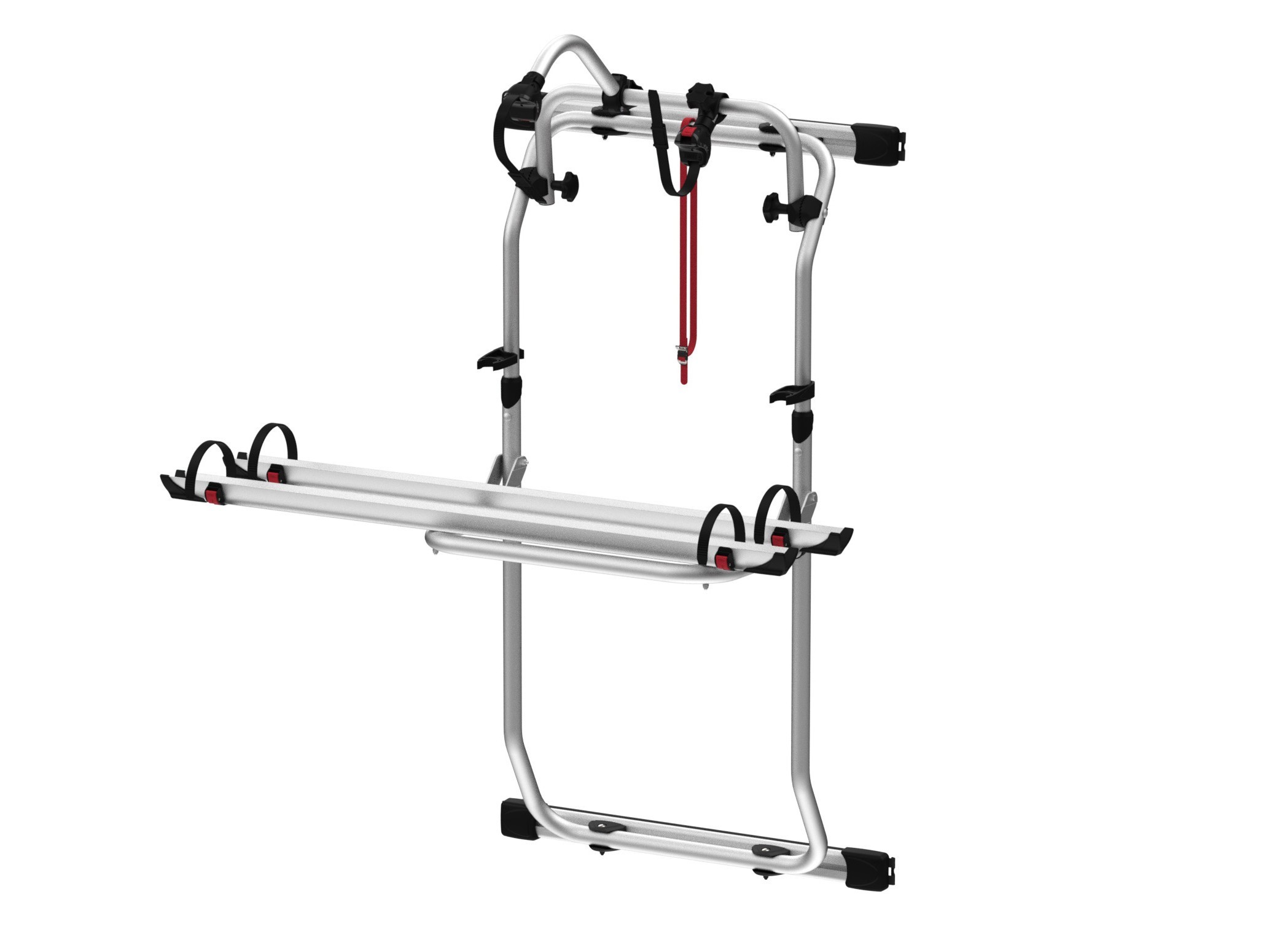

Carry Bike DJ fits to the right hand rear door and carries 2 bikes with a total weight capacity upto 35kg. The bike rack can be fitted and used with a Fiamma Deluxe ladder fitted to the left hand door without interference.

The bike support rails can be set to 3 different heights (standard, medium and low) to make lifting the bikes onto the rack easier. In the medium and lower position you will need a License Plate Carrier or trailer board as the bikes can obstruct the vehicle number plate and running lights.

Specification

Downloads

Instructions for Fiamma Kit Bars Sprinter / Crafter

Instructions for Fiamma Carry Bike Frame
