Fiamma Carry Bike DJ Crafter Aft 2017

Fiamma Carry Bike DJ Crafter Aft 2017
SKU: 02096-26- / 08754-03-
£427.98 Inc. VAT

£0.00£0.00
    Cancel OK
    Quantity
    Usually Dispatched in1 working day

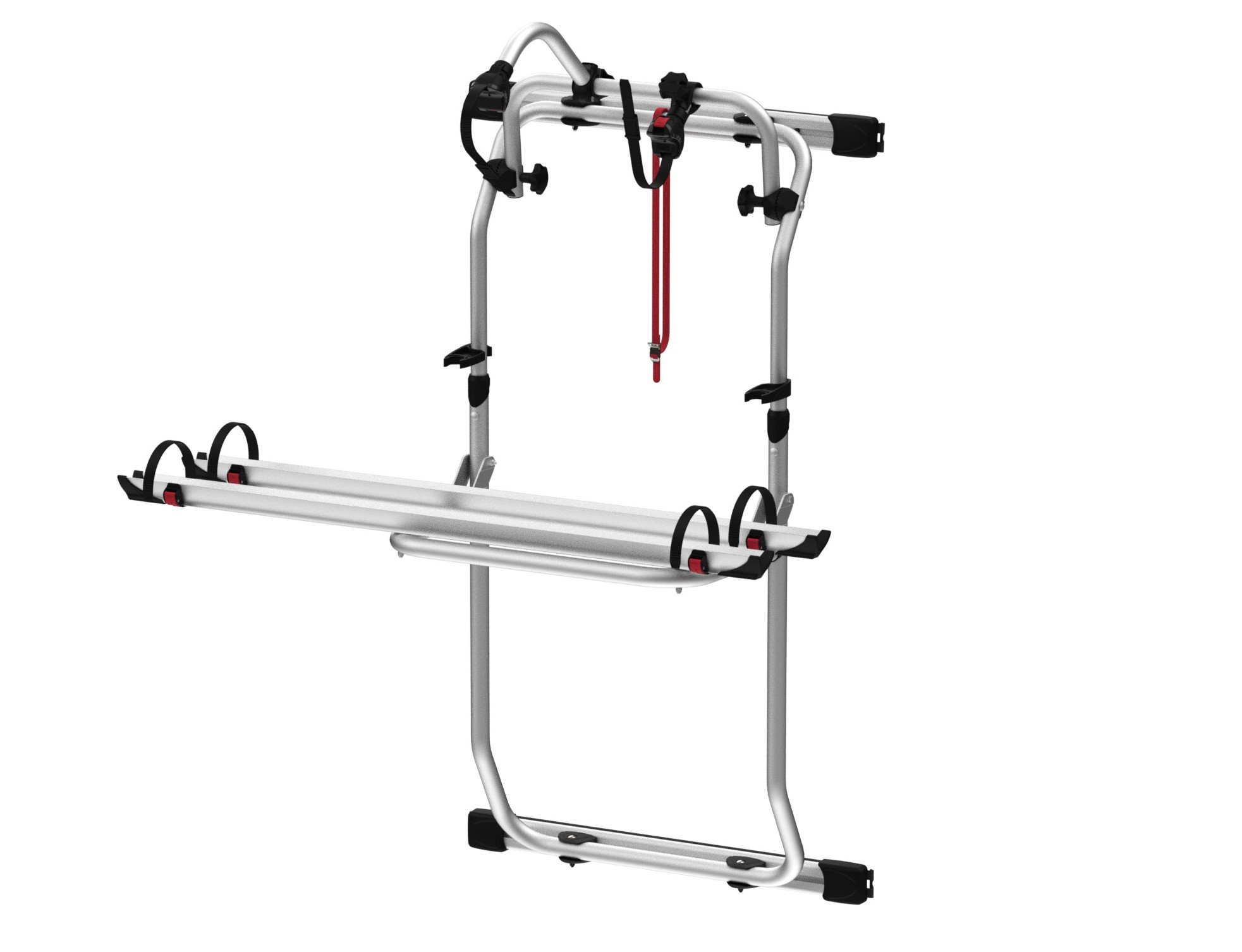

    Fiamma bike rack to fit Volkswagen Crafter from 2017 onward with double rear doors (H3 and H4).

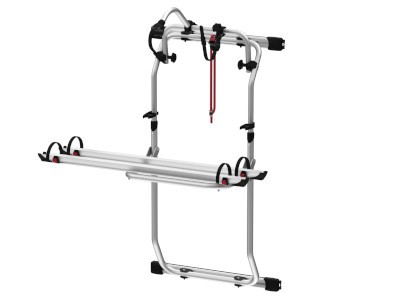

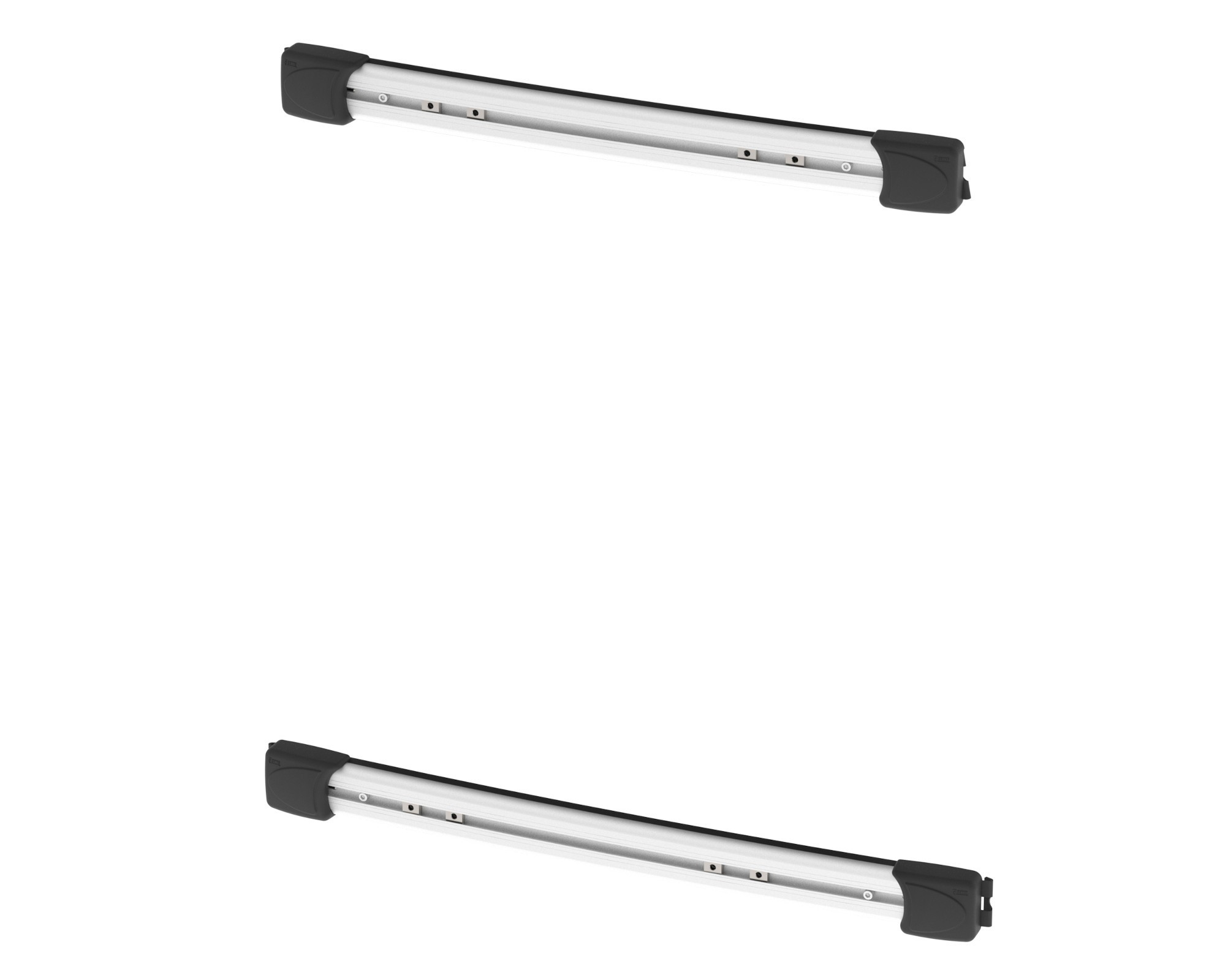

    This listing includes the Fiamma Kit Bars DJ Crafter >17 (08754-03-) which is the vehicle specific mounting bars, and Fiamma Carry Bike DJ (02096-26-) which is the part the bikes are loaded on. Both parts are anodised aluminium with black trim.

    Carry Bike DJ fits to the right hand rear door and carries 2 bikes with a total weight capacity upto 35kg. The bike rack can be fitted and used with a Fiamma Deluxe ladder fitted to the left hand door without interference.

    The bike support rails can be set to 3 different heights (standard, medium and low) to make lifting the bikes onto the rack easier. In the medium and lower position you will need a License Plate Carrier or trailer board as the bikes can obstruct the vehicle number plate and running lights.

    Specification

    Model Carry Bike DJ Sprinter / Crafter
    Bikes carried standard 2
    Bikes carried max 2
    Max Load 35 kg
    E-bike compatible No

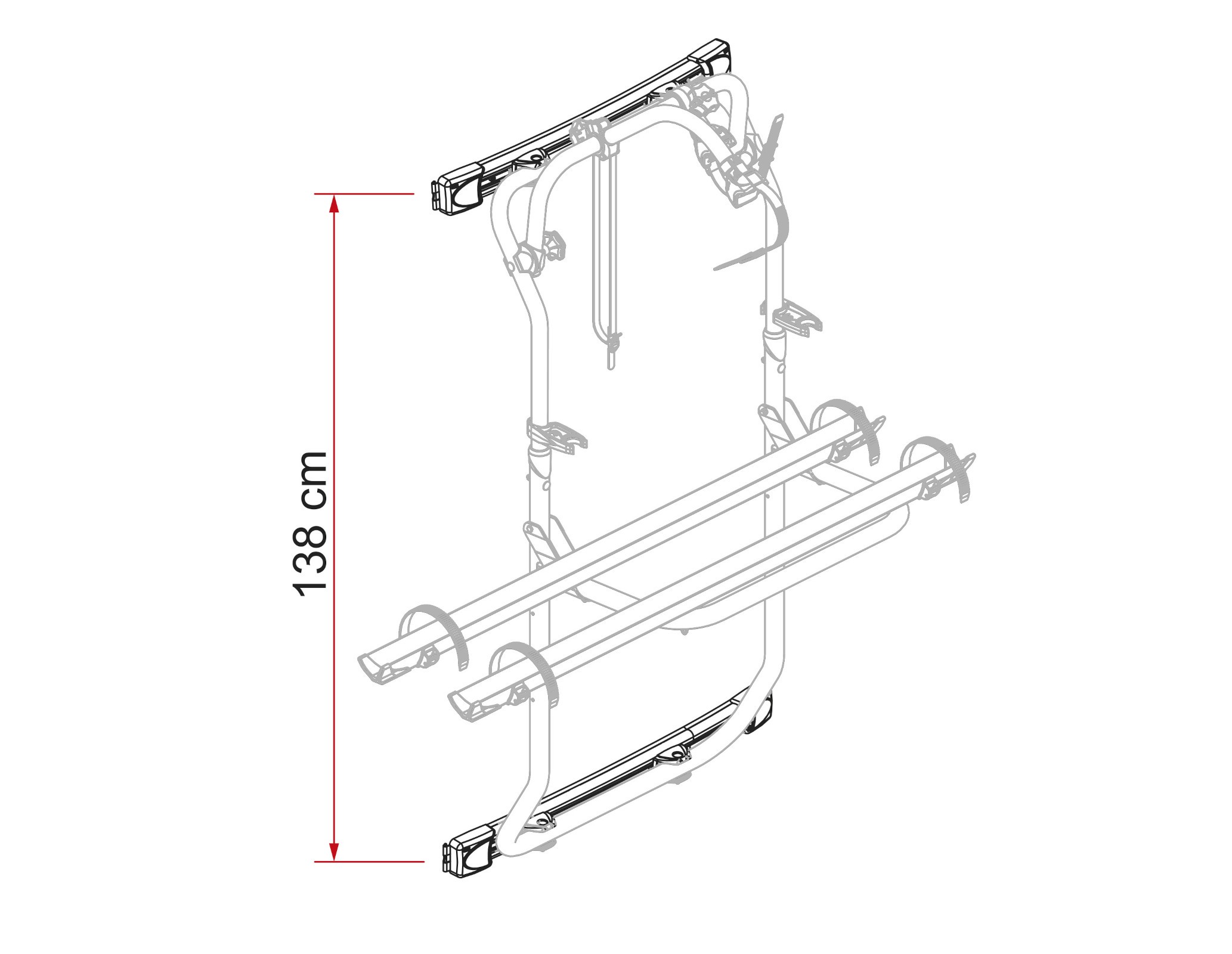

    Vertical Wheelbase 138cm
    Weight 10.4 kg
    Bike-Block Pro 1 Standard
    Bike-Block Pro 3 Standard
    Rail Quick Pro 2 x Included as standard
    License Plate Carrier Optional

    Downloads

    Instructions for Fiamma Kit Bars Ducato

    Click to download Fiamma Carry Bike Kit Bars Crafter Fitting Instructions

    Instructions for Fiamma Carry Bike DJ Bars

    Click to download Fiamma Carry Bike Bars DJ Fitting Instructions
    Fitting Position Rear Door Mounted
    Bikes Standard 2
    Bikes Carried Max 2
    Weight Capacity (kg) 35
    E-Bike Compatible No
    Fitting Notes
    Rear Door Style Double Barn Doors
    Fits Spoiler? No
    Weight 10.40 kgs
    Manufacturers Part Number 02096-26- / 08754-03-
