Fiamma Carry-Bike 200 D

Fiamma Carry-Bike 200 D
Rear mounted bike rack for minivan with double doors Fiamma ACrry Bike 200 D Dimensions
SKU: 8004815383077
£280.00 Inc. VAT
Usually Dispatched in1 working day

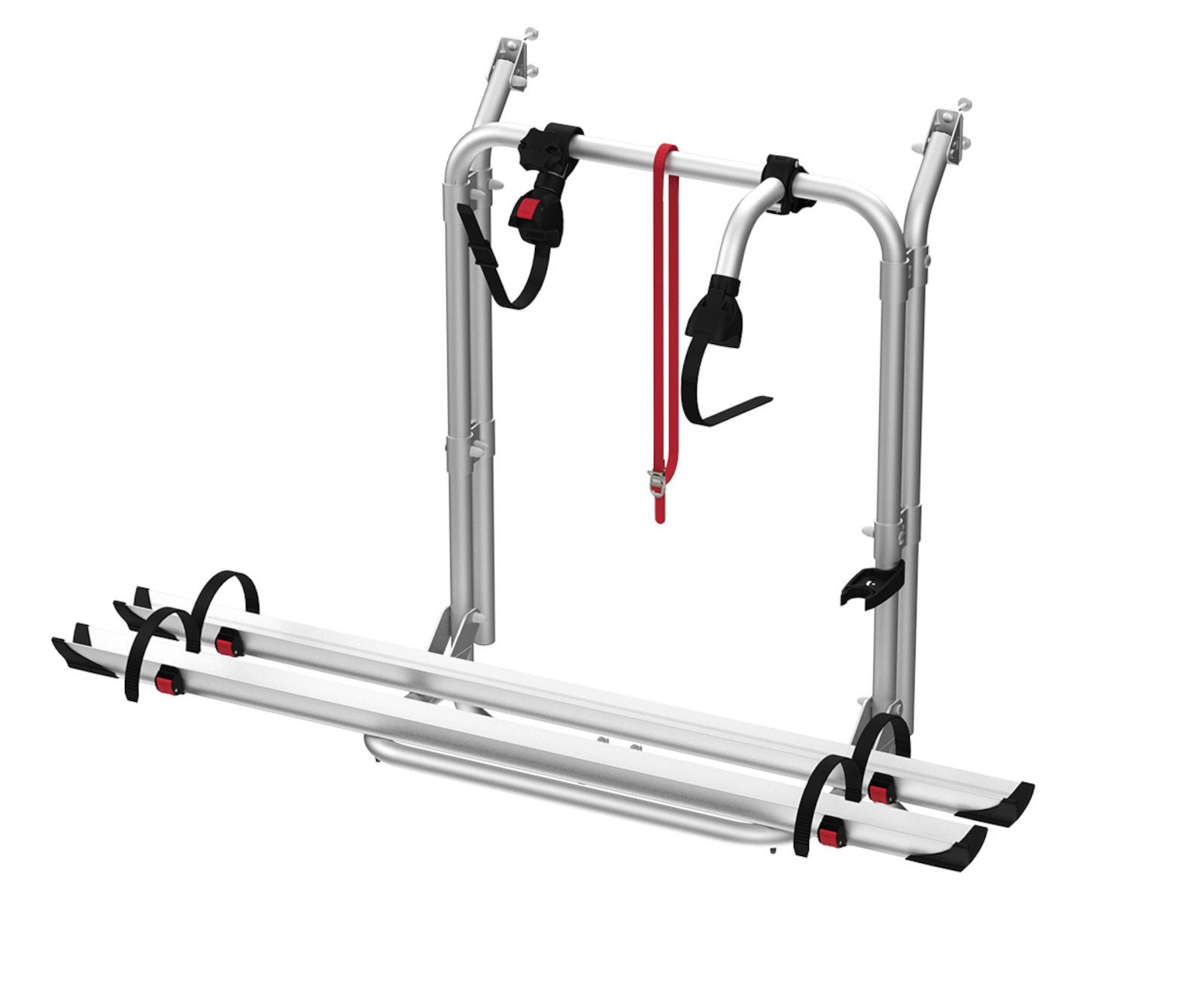

Universal Carry-Bike Designed for Minivans with Double Rear Doors

Fiamma 200 D Carry-Bike is suitable for minivan fitted with double rear doors, wheelbase variable from 58 to 62 cm to adapt to different rear doors.

Can be installed to Fiat Ducato before 1999, Peugeot J5 before 1999, Citroen C25 before 1999, Ford Transit, VW LT, VW LT high roof, Mercedes MB 100, Ford Transit high roof, Citroen Jumper, Peugeot Boxer and Renault Master after June 2006.

Carry-Bike 200 D Standard Kit

Supplied as standard with: 2x Rail Premium (bike support), 1x Bike-Block Pro 1 and 2 (Carry-Bike frame to bicycle holder), 1x Rack Holder (secures the bike support when folded away) and 1x Security Strip (buckled strap), installation bracket and Fixing-Bar. Supplied as standard to carry 2-bikes.

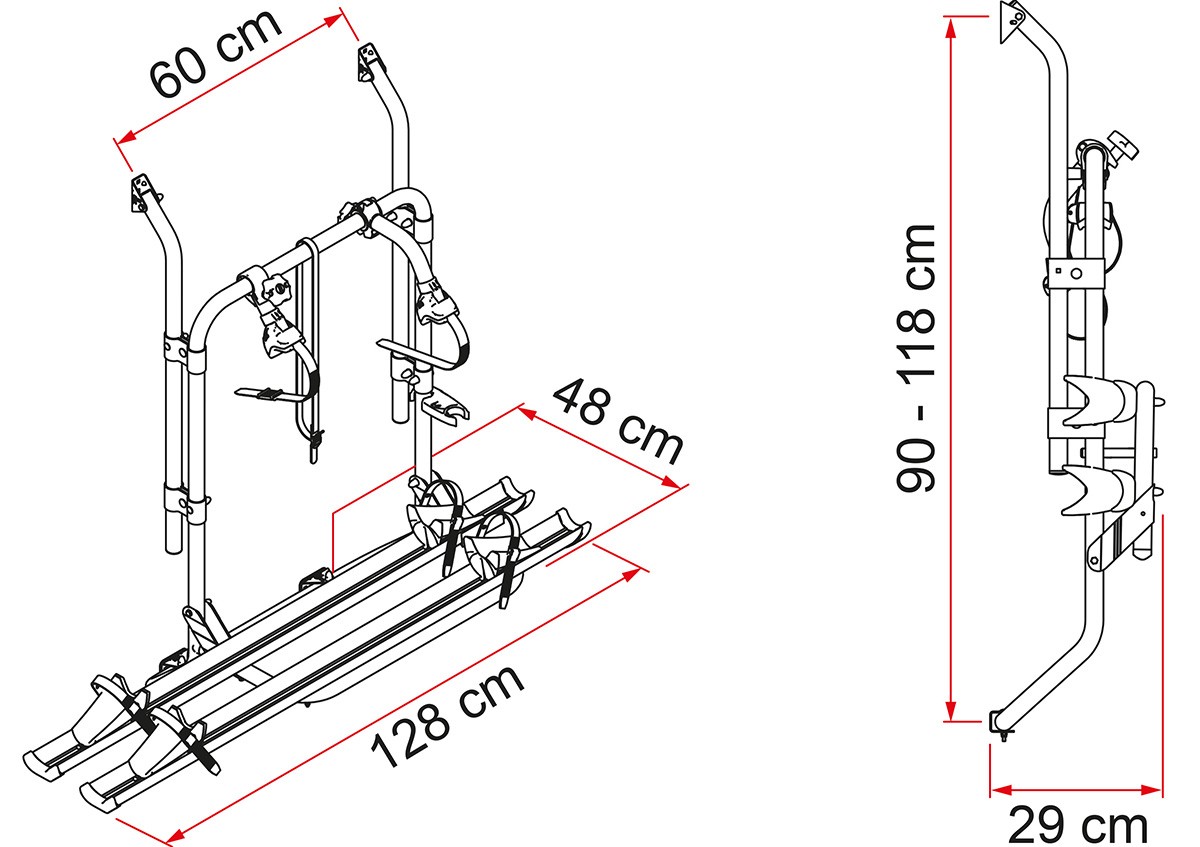

  • Dimension: see images.
  • Max. Load: 35 Kg.
  • Weight: 6.9 Kg.
  • TUV Approved.
  • Bikes carried as standard: 2-bikes.
  • Max. bikes carried: 2-bikes
  • Frame construction: Anodised aluminium.


Click to download Fiamma Carry Bike CL Fitting Instructions
For Vehicle Type Van / Conversion
Fitting Position Rear Door Fitting
Bikes Standard 2
Bikes Max 2
E-Bike Compatible No
Fitting Notes
Min. Vertical Fitting Distance (cm)
Max. Vertical Fitting Distance (cm)
Bike Rack Fits Within...(cm)
Bike Rack Fits Over ...(cm)
Weight Capacity (kg)
Weight 6.90 kgs
Manufacturers Part Number 02093A15A
