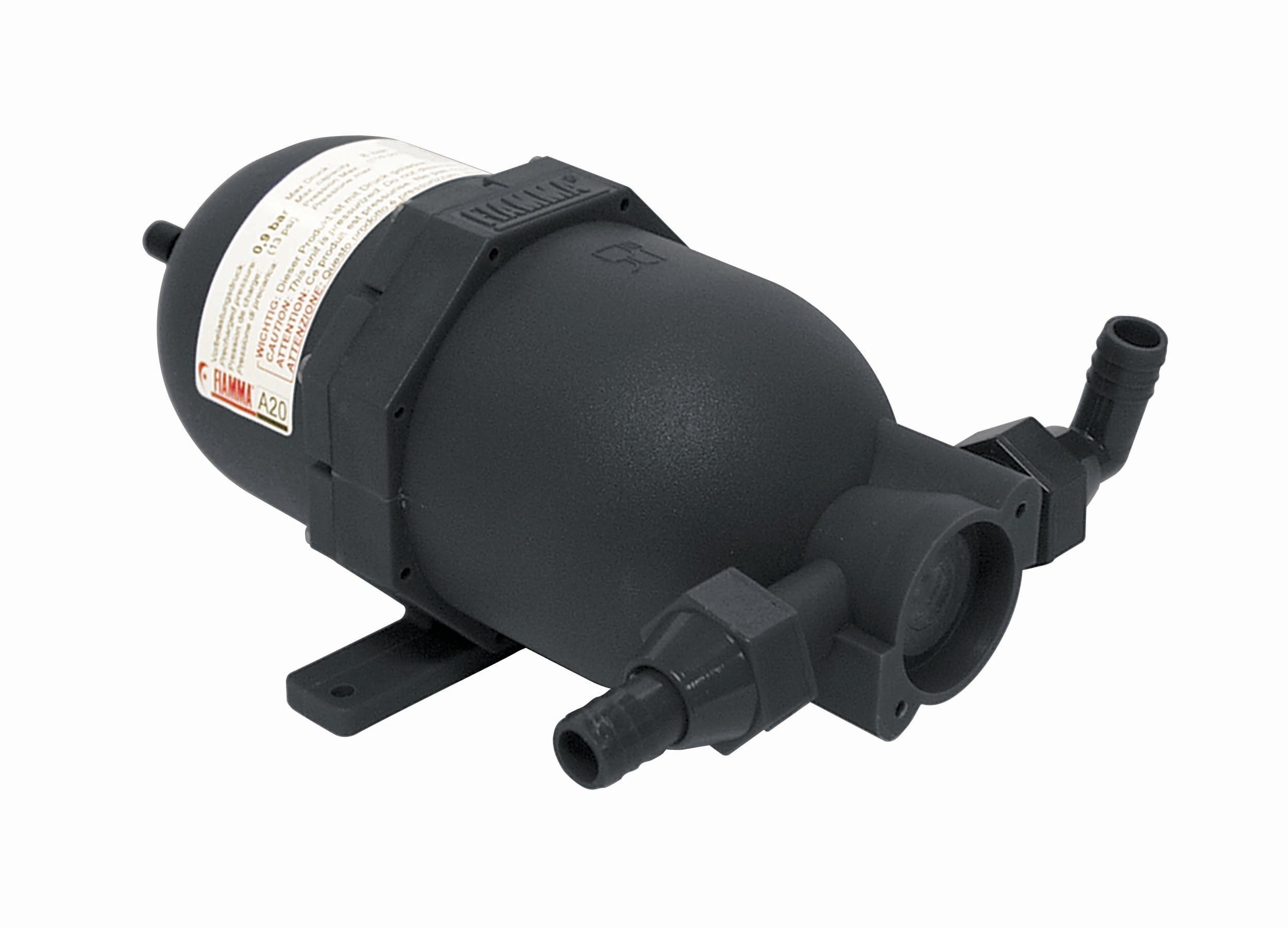

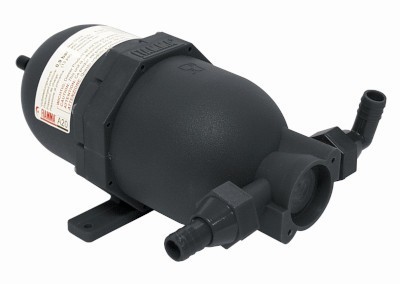

Fiamma A20 Expansion Tank

Fiamma A20 Expansion Tank

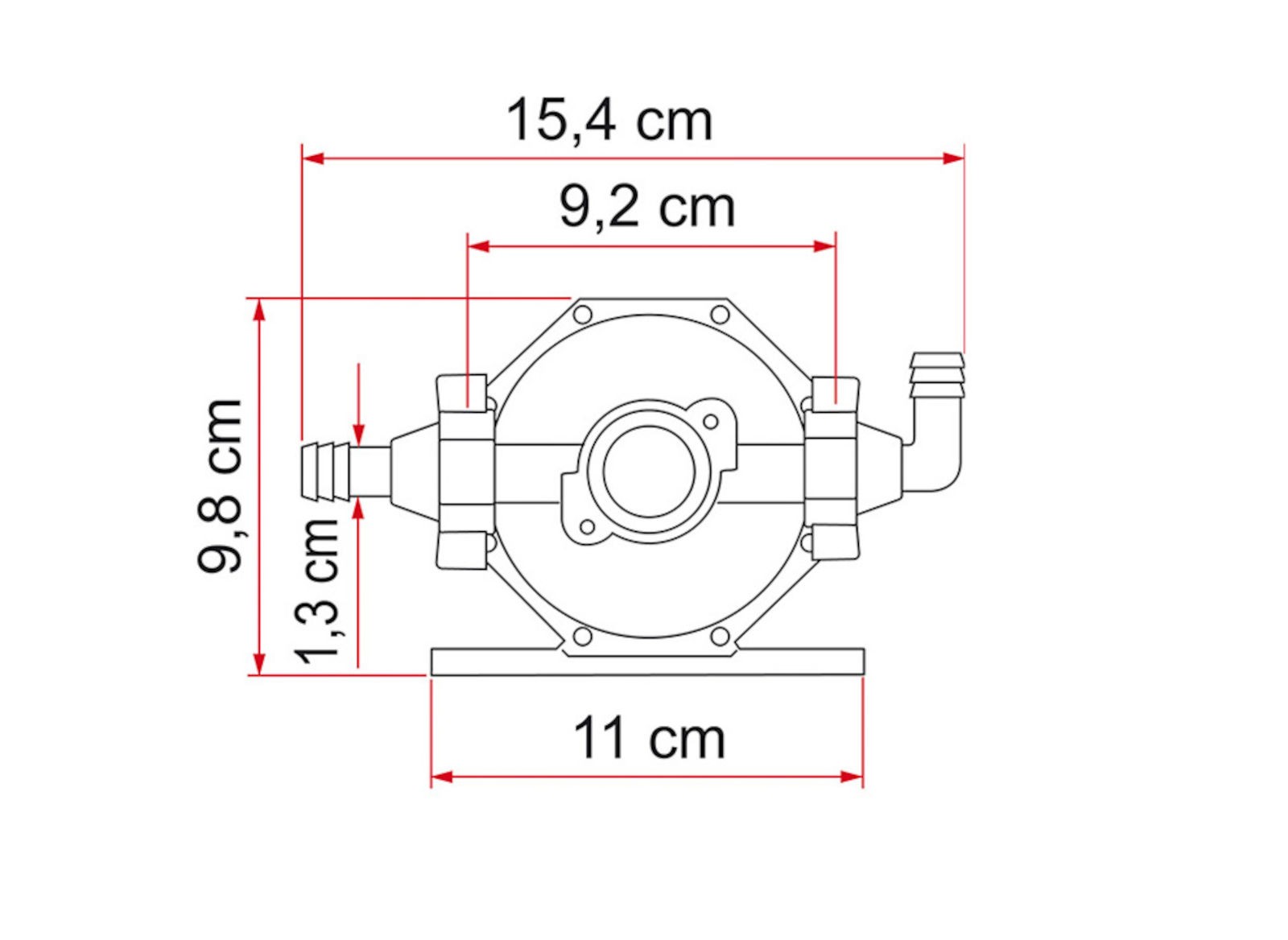

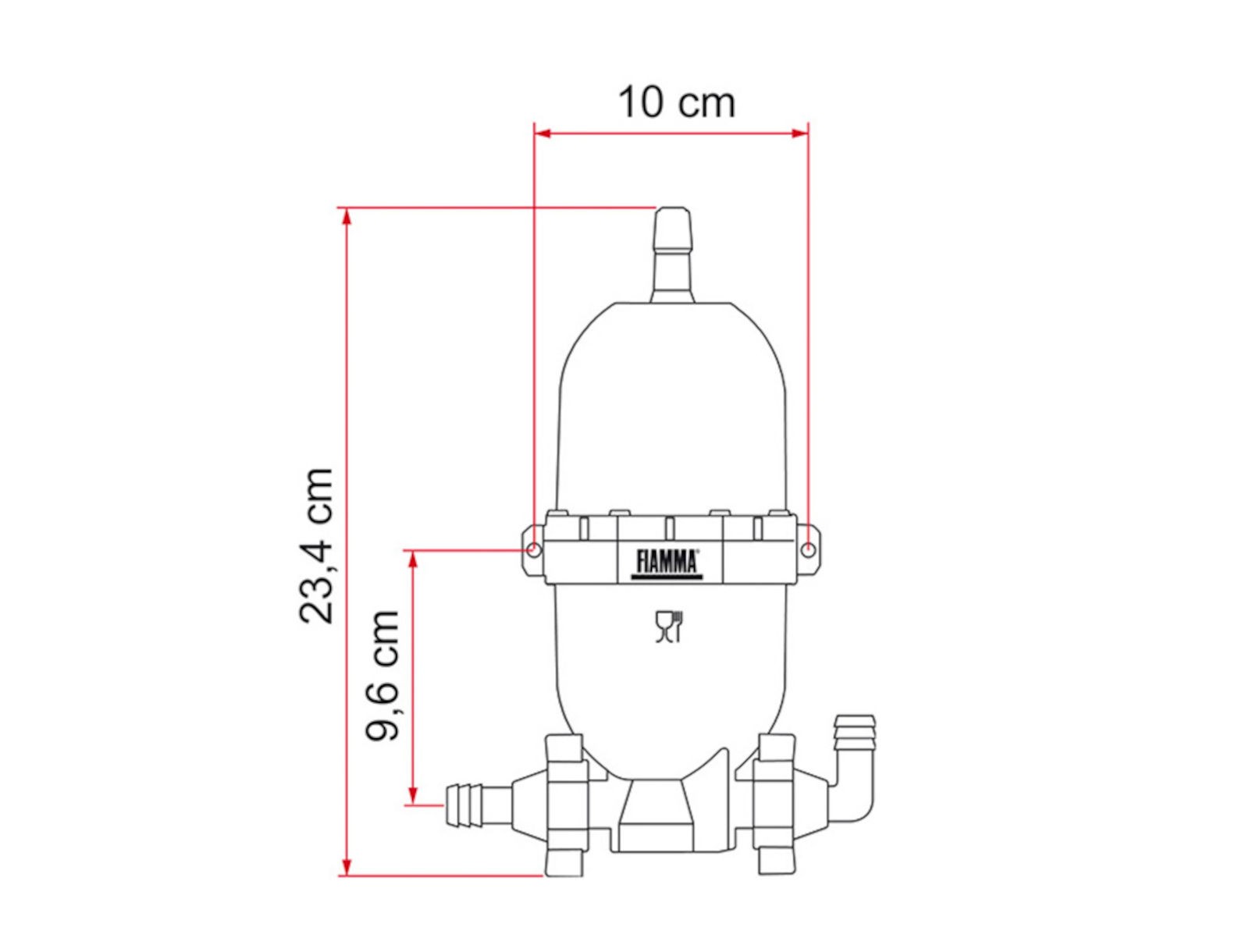

A20 Expansion tank dimensions A20 Expansion tank dimensions
SKU: 02478-02-
R.R.P.: £47.53
save 22%
£37.00 Inc. VAT
Usually Dispatched in1 working day

The Fiamma universal A20 Expansion Tank saves water and electricity and is suitable for all caravan and motorhome pressure switch pumps. Ideal addition to AQUA 8 water pump, previous models and all other types of pressure switch pumps including Shurflo and Whale.

The new expansion tank eliminates the pulsating operation of pressure switch pumps and supplies a constant flow of water in the required quantity. It extends the life of the pump and boiler and cuts water consumption. The internal pressurised diaphragm provides a smooth, surge-free flow.

The Fiamma A20 expansion Tank can be dismantled for diaphragm operations. It is precharged at 0.9 bars (13.05 psi) but it can be charged with the special valve with a normal compressor, which allows it to be adapted to all pressure switch pumps on the market. Supplied with straight and angled 13mm flexible hose connectors and self-tapping screws for fitting.


  • Dimensions: See images.
  • Pre-charged pressure: 0.9 bars (13.05 psi).
  • Fitting: Supplied with 13mm hose connectors.
  • Colour: Black.


Click to download Fiamma A20 Water Pump Fitting Instructions
