Carry-Bike Caravan Universal

Carry-Bike Caravan Universal
SKU: 02093A76A
R.R.P.: £292.68
save 4%
£280.00 Inc. VAT
Usually Dispatched in1 working day

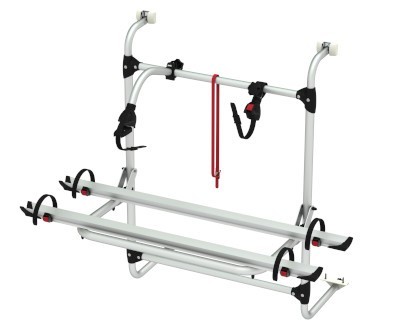

Universal Carry-Bike for Caravans

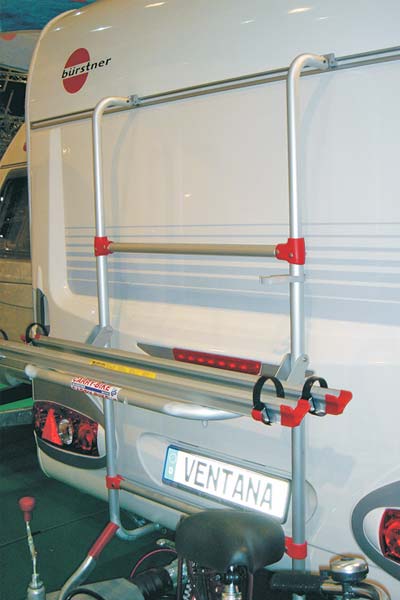

The Fiamma Carry-Bike Caravan Universal is fitted directly to the caravan supporting frame. Care should be taken when considering installation and Agent Fiamma would always advise you seek advise from a reputable caravan engineer or your local caravan agent. The upper and lower brackets are installed by using self-tapping screws. The frame is telescopic and adjustable from 100 to 180 cm in height.

Carry-Bike Caravan Universal Standard Kit

Supplied as standard with: 2x Rail Quick (bike support), Bike-Block Pro 1 and 3 (frame to bike holder) and 1x Rack Holder (secures the bike support when folded away). Supplied as standard to carry 2-bikes.

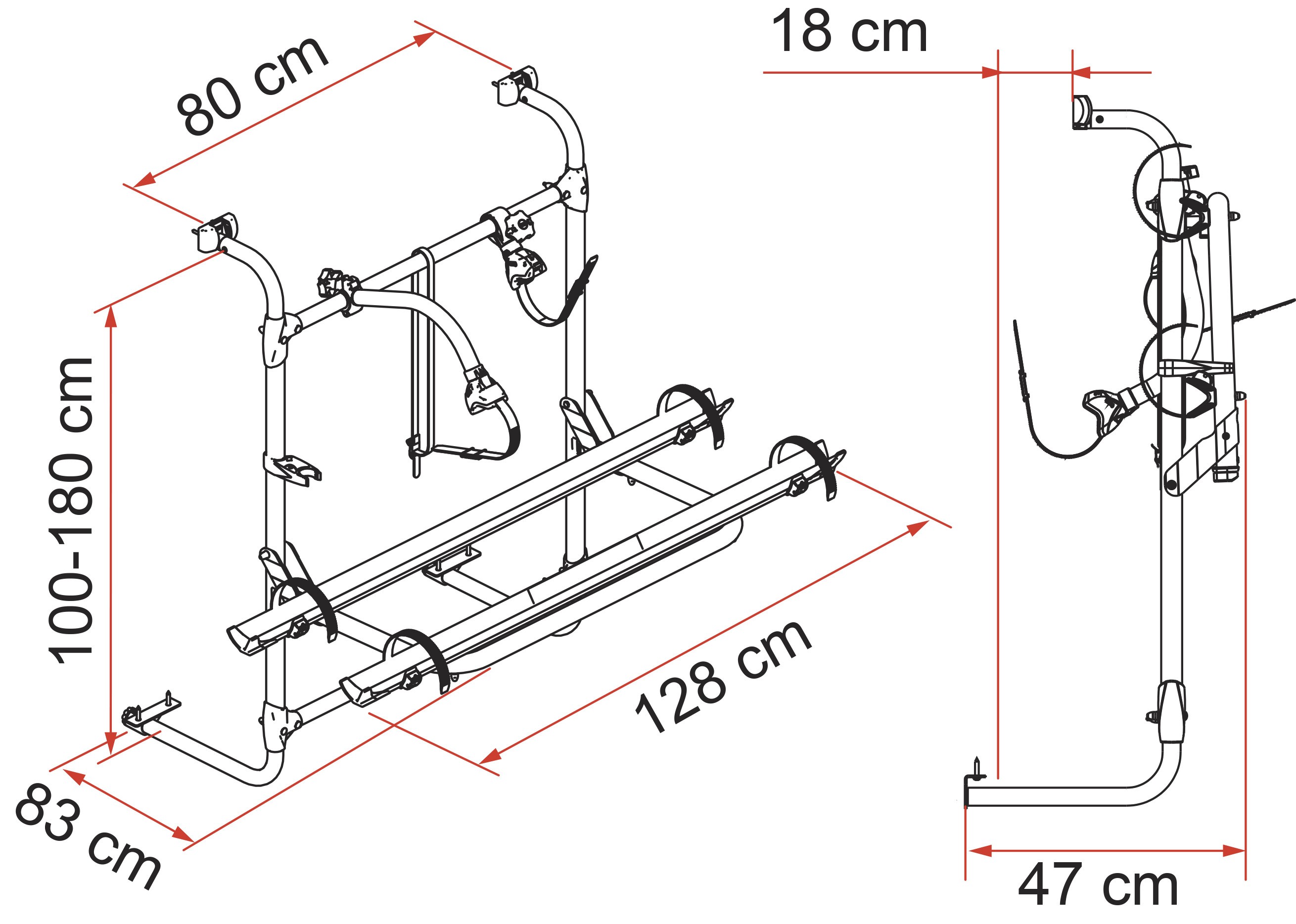

  • Dimension: see images.
  • Max. Load: 35 Kg.
  • Weight: 7.5 Kg.
  • Carries as standard: 2-bikes.
  • Carries max.: 2-bikes
  • Frame construction: Anodised aluminium.


Click to download Fiamma Carry Bike CL Fitting Instructions
For Vehicle Type Caravan
Fitting Position Rear Wall Fitting
Bikes Standard 2
Bikes Max 2
E-Bike Compatible Option
Fitting Notes
Min. Vertical Fitting Distance (cm)
Max. Vertical Fitting Distance (cm)
Bike Rack Fits Within...(cm)
Bike Rack Fits Over ...(cm)
Weight Capacity (kg)
Weight 7.50 kgs
Global Trade Item Number 8004815397692
Manufacturers Part Number 02093A76A
