Fiamma Carry-Bike Caravan XL A Pro

Fiamma Carry-Bike Caravan XL A Pro
SKU: 02093B91A
£311.12 Inc. VAT
Usually Dispatched in1 working day

Carry-Bike Caravan XL A Pro for Convenient Access & up to 3-Bikes

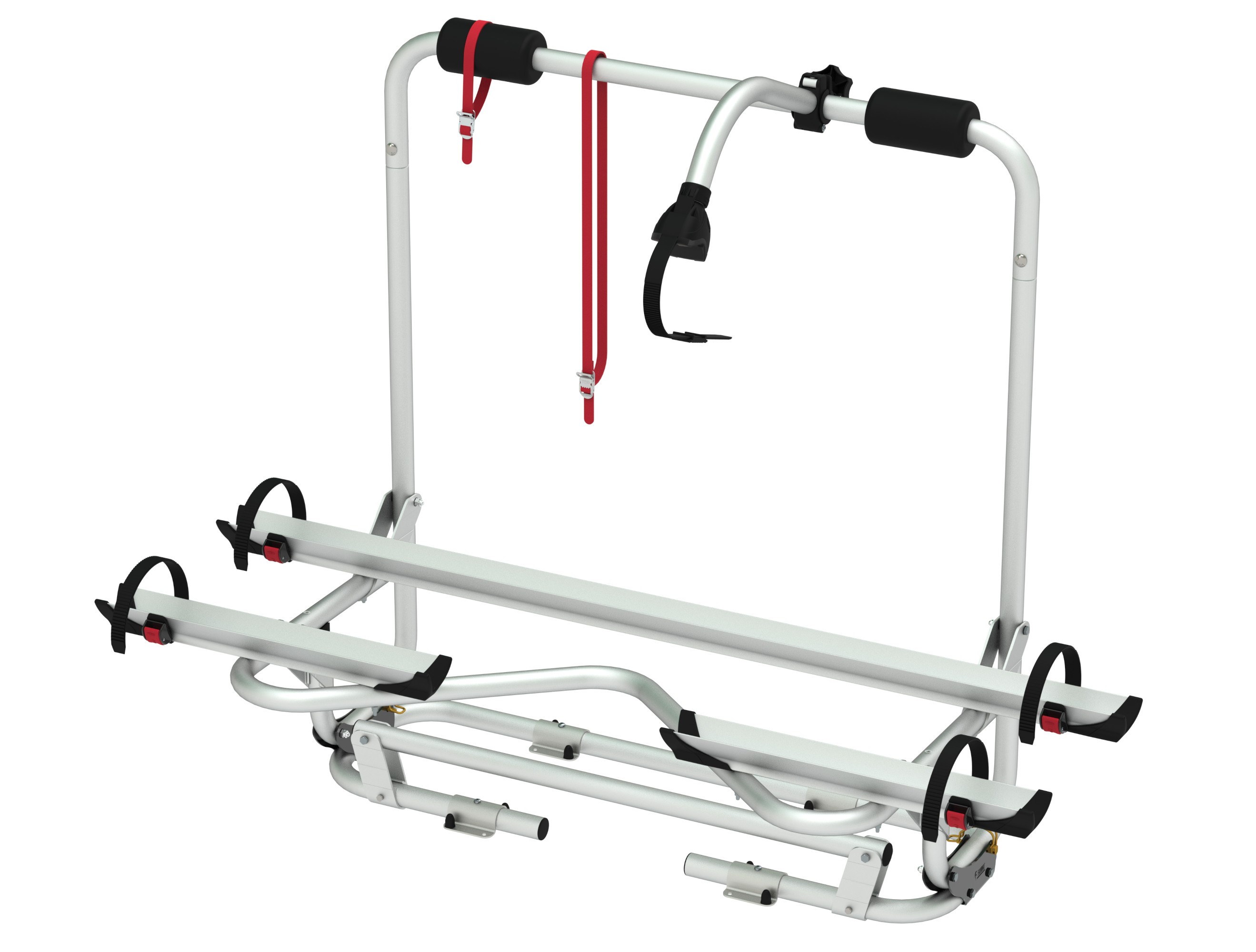

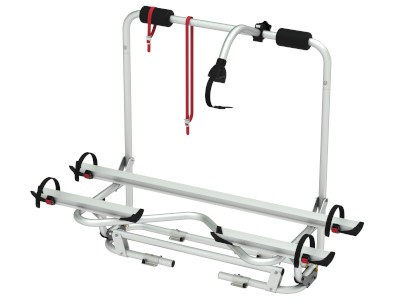

The Fiamma Carry-Bike Caravan XL A Pro is a new improved version of bike carrier from the Caravan XL A PRO line. Balancing upper part allows to open the storage compartment even with the bikes mounted. Quick and convenient bike loading. Provided with reinforced bar (see 'A' sizes image).

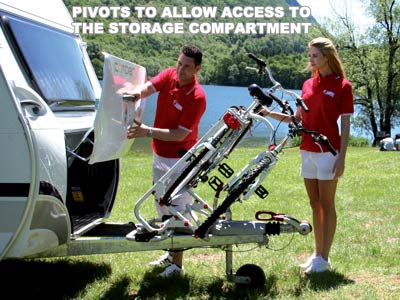

Pivots forward allowing access to the storage compartment, even when bikes are fitted. The installation does not require drilling of the chassis. Supports a maximum of 3-bikes.

Carry-Bike Caravan XL A Pro Standard Kit and Upgrades

Supplied as standard with: 1x Rail Quick (bike support), 2x Mini Rail Quick (bike support), 1x Bike Block Pro 3 (Carry-Bike to bike holder) and 1x Security Strip (buckled strap). Supplied as standard to carry 2-bikes but can be upgraded to carry 3 using Agent Fiamma upgrade kit (see images above).

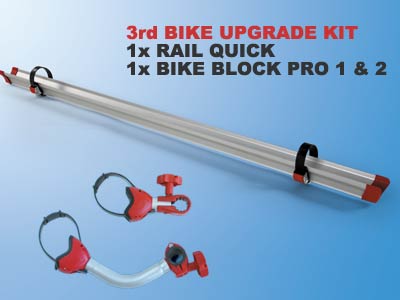

  • 3rd bike upgrade kit: 1x Rail Quick and 1x Bike Block Pro 1 and 2.

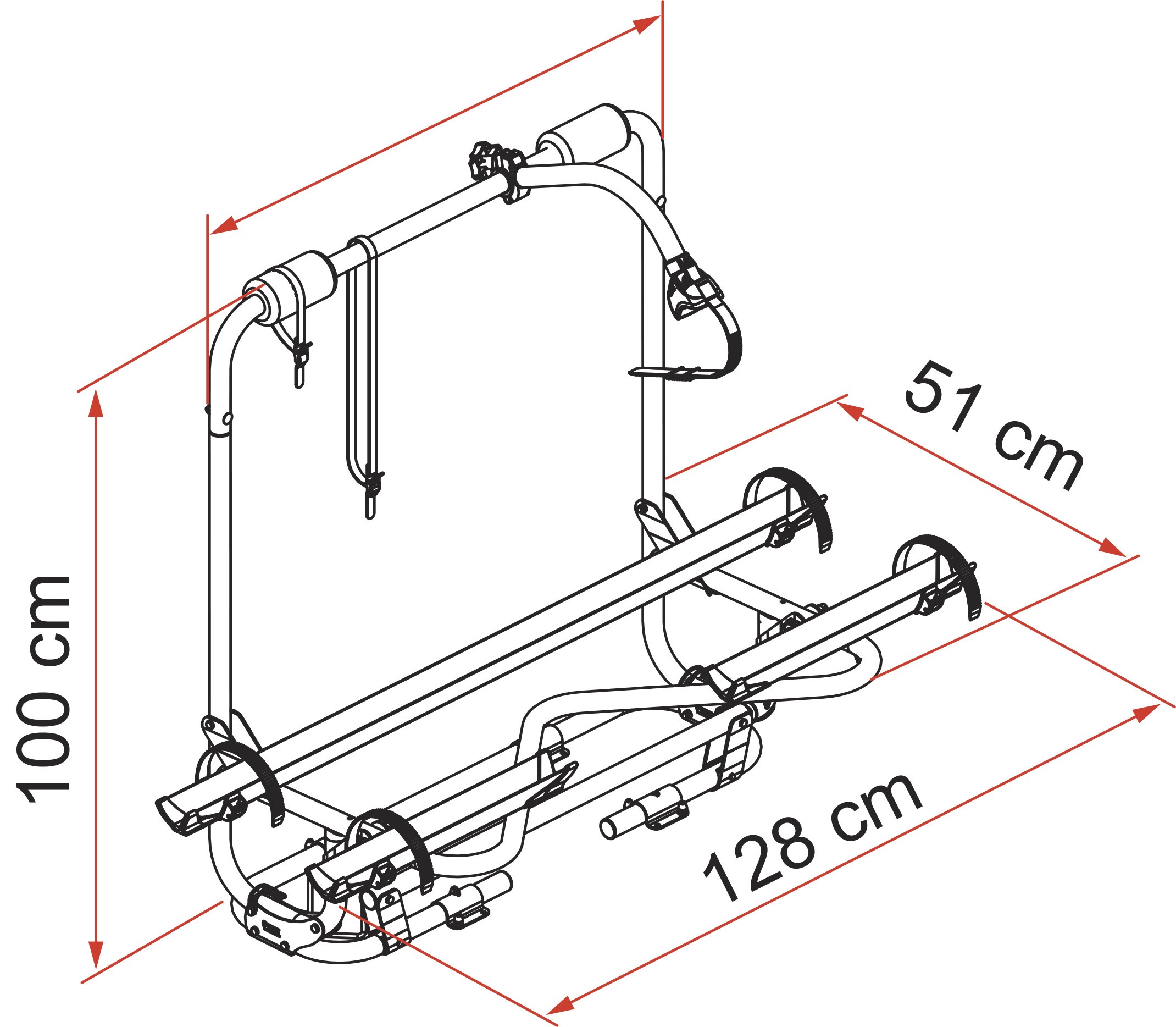

  • Dimension: see images.
  • Max. Load: 50 Kg.
  • Weight: 9 Kg.
  • Carries as standard: 2-bikes.
  • Carries max.: 3-bikes
  • Frame construction: Anodised aluminium.


Click to download Fiamma Carry Bike CL Fitting Instructions
For Vehicle Type Caravan
Fitting Position A-Frame Fitting
Bikes Standard 2
Bikes Max 3
E-Bike Compatible Option
Fitting Notes
Min. Vertical Fitting Distance (cm)
Max. Vertical Fitting Distance (cm)
Bike Rack Fits Within...(cm)
Bike Rack Fits Over ...(cm)
Weight Capacity (kg)
Weight 9.00 kgs
Global Trade Item Number 8004815397753
Manufacturers Part Number 02093B91A
