Carry-Bike Caravan Simple Plus

Carry-Bike Caravan Simple Plus
SKU: 02093-36-
£184.96 Inc. VAT
Quantity
Usually Dispatched in1 working day

The Carry-Bike for Caravan Weak Rear Walls

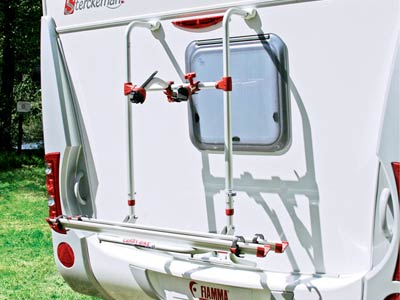

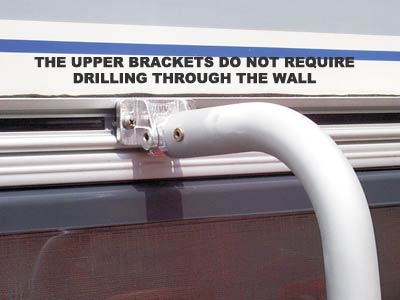

The Fiamma Carry-Bike Simple Plus 200 is suitable for mounting on caravans with weak and curved rear walls. Installed by using the existing walls reinforcement points. The upper brackets are positioned in the rail over the rear window. The standard delivered lower bracket is fixed to the lower wall reinforced points. Telescopic frame from 112 - 150 cm.

Carry-Bike Pro Simple Plus 200 Standard Kit

Supplied as standard with: 2x Rail Quick (bike support), Bike-Block Pro 1 and 2 (frame to bike holder), 1x Rack Holders (secures the bike support when folded away) and Security Strip (buckled strap). Supplied to carry 2-bikes.

Specification:

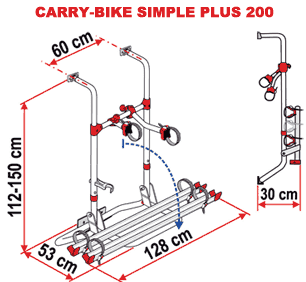

  • Dimension: see images.
  • Max. Load: 35 Kg.
  • Weight: 6.4 Kg.
  • TUV Approved.
  • Carries as standard: 2-bikes.
  • Carries max.: 2-bikes
  • Frame construction: Anodised aluminium.
For Vehicle Type Caravan
Fitting Position Rear Wall Fitting
Bikes Standard 2
Bikes Max 2
E-Bike Compatible Option
Fitting Notes
Min. Vertical Fitting Distance (cm)
Max. Vertical Fitting Distance (cm)
Bike Rack Fits Within...(cm)
Bike Rack Fits Over ...(cm)
Weight Capacity (kg)
Weight 51.00 kgs
Manufacturers Part Number 02093-36-
